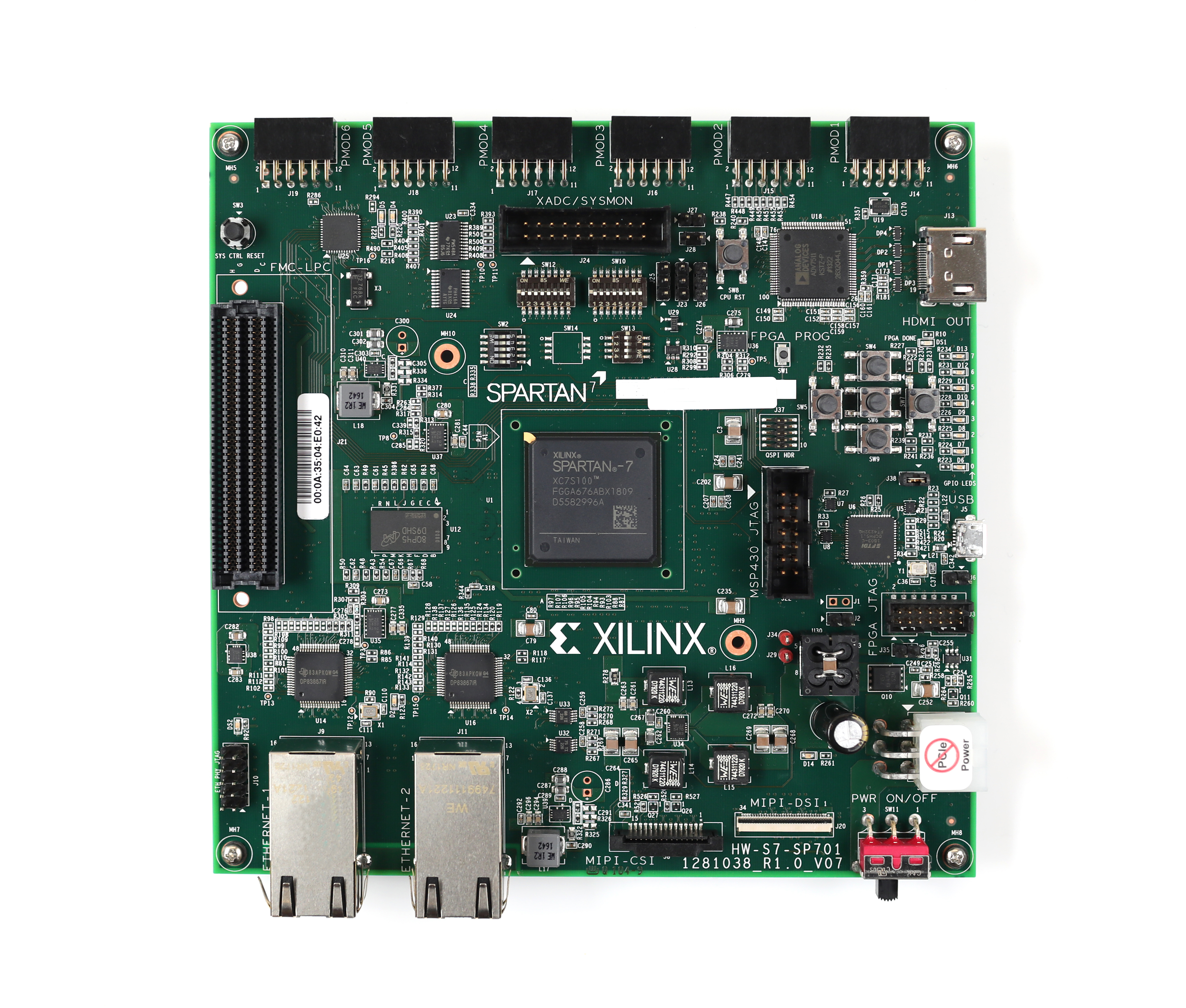

EK-S7-SP701-G
- Video interfaces including MIPI CSI, DSI, and HDMI
- Expandable I/O via Pmods and FPGA Mezzanine Card (FMC) interfaces
- Dual ethernet for industrial networking
- Built for connectivity with 400 available I/O pins
- Scalable across the industry’s broadest cost-optimized portfolio
- Includes AMD Software Development Kit (XSDK) for C compilation and debug
- Customize designs quickly and easily with drag & drop peripherals
- Featuring the Spartan 7 XC7S100 FPGA: 102,400 system logic cells, 160 DSP slices
- 1,100Kb DRAM, 4,320Kb block RAM memory and 400 maximum I/0 pins
- 8 clock management tiles (1MMCM + 1 PLL), 1 XADC, 1 configuration AES/HMC block
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| No | ||
| Programmable Logic Tools | ||
| 1Gb QSPI Flash | ||
| HDMI Output|MIPI CSI|MIPI DSI | ||
| Yes | ||
| Yes | ||
| FMC|I2C|JTAG|PMOD|SPI|QSPI | ||
| 4 Gbit | ||
| DDR3L | ||
| 152.4 x 152.4 x 2.24 mm | ||
| Evaluation Kit |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | null |
| ECCN: | 3A992.a |
| HTSN: | 9030820000 |
| Schedule B: | 9030820000 |
Factory Lead Time:
