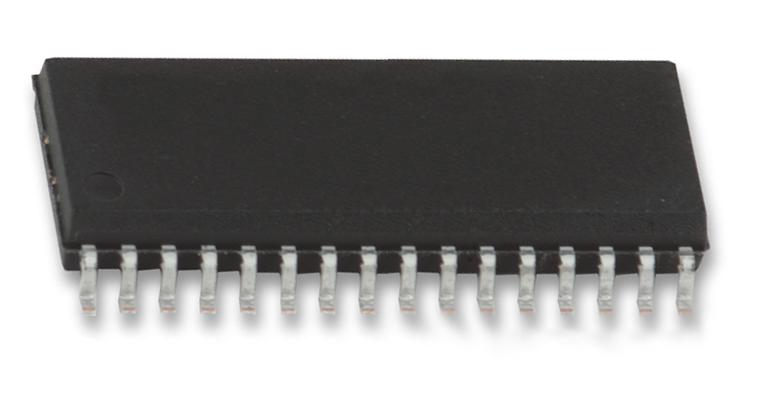

AS6C4008-55SINTR
SRAM Chip Async Single 3.3V/5V 4M-Bit 512K x 8Bit 55ns 32-Pin SOP T/R
Click image to enlarge
-
RoHS 10 Compliant -
Tariff Charges
- Access time : 55 ns
- Low power consumption:
- Operating current : 30 mA (TYP.)
- Standby current : 4 µA (TYP.)
- Single 2.7V ~ 5.5V power supply
- All outputs TTL compatible
- Fully static operation
- Tri-state output
- Data retention voltage :1.5V (MIN.)
- All products ROHS Compliant
- Package : 32-pin 450 mil SOP;32-pin 600 mil P-DIP
- 32-pin 8mm x 20mm TSOP-I
- 32-pin 8mm x 13.4mm STSOP
- 36-ball 6mm x 8mm TFBGA
- 32-pin 400 mil TSOP-II
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| 55 ns | ||
| null | ||
| 60 MA | ||
| null | ||
| Surface Mount | ||
| null | ||
| 4 Mbit | ||
| null | ||
| 85 °C | ||
| -40 °C | ||
| null | ||
| null | ||
| 5.5 MV | ||
| 2.7 MV | ||
| 5 MV |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | null |
| ECCN: | 3A991.b.2.a |
| HTSN: | 85423290 |
| Schedule B: | 85423290 |
Factory Lead Time:
