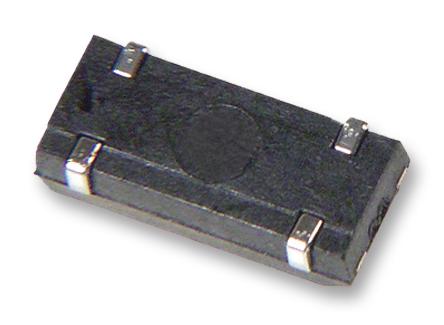

ABS25-32.768KHZ-1-T
Crystal, 32.768 kHz, SMD, 8mm x 3.8mm, 12.5 pF, 10 ppm, ABS25 Series
The ABS25-32.768KHZ-1-T is a 8 x 3.8 x 2.5mm 10ppm low frequency surface-mount Crystal with plastic moulded ideal for high density circuit boards. The ABS25 series for use with the wireless communications, PDA and palm pilots, wide range in communication, measuring equipment and industrial applications. It is suitable for reflow profile.
- 50kΩ Maximum equivalent series resistance
- 1µW Maximum drive level
- 500MΩ at 100VDC Minimum insulation resistance
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| SMD | ||
| 8mm x 3.8mm x 2.5mm | ||
| 32.768 kHz | ||
| Surface Mount | ||
| Standard | ||
| 50 kOhm | ||
| 10 ppm | ||
| 12.5 pF | ||
| 4 | ||
| 85 °C | ||
| -40 °C | ||
| ABS25 Series |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | null |
| ECCN: | EAR99 |
| HTSN: | PARTS... |
| Schedule B: | PARTS... |
Factory Lead Time:
