ABS13-32.768KHZ-T
Crystal, 32.768 kHz, SMD, 6.9mm x 1.4mm, 12.5 pF, 20 ppm, ABS13

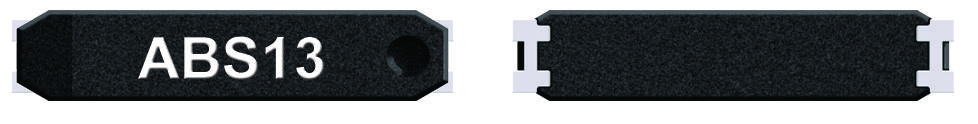

The ABS13-32.768KHZ-T is a 6.9 x 1.4 x 1.3mm 20ppm surface-mount low profile Crystal features plastic with embedded heat resistant crystal in cylinder. The ABS13 series crystal for use with the wireless communications, PDA and palm pilots, wide range in communication, measuring equipment and industrial applications.
- 65kO Maximum equivalent series resistance
- 1µW Maximum drive level
- 500MO at 100VDC Minimum insulation resistance
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| SMD | ||
| 6.7mm x 1.4mm x 1.4mm | ||
| 32.768 kHz | ||
| Surface Mount | ||
| Standard | ||
| 65 kOhm | ||
| 20 ppm | ||
| 12.5 pF | ||
| 4 | ||
| 85 °C | ||
| -40 °C | ||
| ABS13 Series |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | null |
| ECCN: | EAR99 |
| HTSN: | PARTS... |
| Schedule B: | PARTS... |
Factory Lead Time:
