NXP Matrix headlamp

Mixed Media - 201811 nxp

Matrix LED headlamps integrates DRL , turn signal, combination tail lamp , adaptive system formation, it can according to the surrounding environment for the LED illumination Angle and range of flexble control.


Features

  • INPUT :9V-16V(MAX26V);
  • The demo use ASL5008 to LED Matrix control , the ASL5008 contains 12 series switch array and CAN, it can control every LED and maximum six device in series.
  • The driver use NXP’s ASL4500 to BOOST and ASL3416 to BUCK ,constant current control for LED.
  • The MCU use PS32K144UAV,use CAN port to control the ASL5008 ,aslo can enable and adjust the output current of ASL3416.
  • External CAN bus interface , BCM through CAN bus to control the LED.
  • Each lamp with 36 ORSAM LUW CEUP. CE - 7 M8M 2 W LEDS .


Applications

Long Copy - 201811 nxp

  • Automotive ADB, tail, headlamp
  • High brightness LED matrix system


Key components

  • ASL4500 + ASL3416 -- NXP: BOOST_BUCK
  • ASL5*08 – NXP: Matrix control
  • PS32K144UAV– NXP : MCU control
  • BUK9275-100A, BUK7Y25-60E--nexperia
  • SRR1210A-221M--Bourns
  • UJA1163---NXP :CAN
  • LUW CEUP. CE - 7 M8M: ORSAM

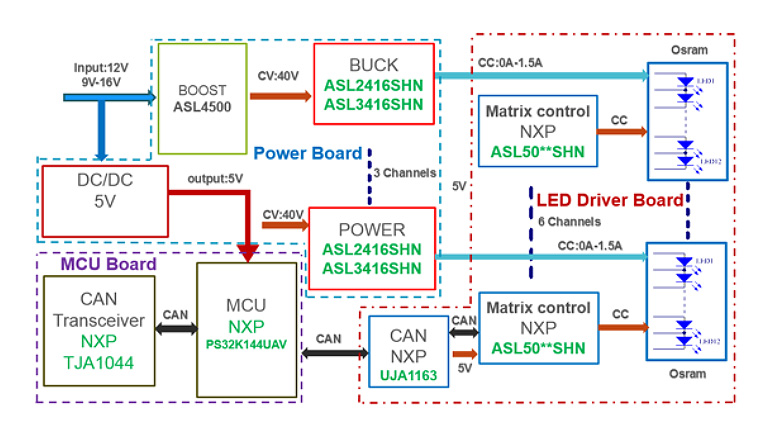

Block diagram

NXP Matrix headlamp
