Vishay - VCNL4035X01

Mixed Media - AAC201801 vishay

Display portlet menu

This is a fully integrated proximity and ambient light sensor, for gesture applications, I²C interface, with interrupt function.

The product's benefits include:

  • AEC-Q101 qualified
  • Integrated modules: ambient light sensor (ALS)
  • FiltronTM technology adoption: close to real human eye response
  • O-TrimTM technology adoption: ALS output tolerance ≤ 10 %
  • Selectable maximum detection range (262 / 524 / 1048 / 2096 / 4192) lux with highest sensitivity 0.004 lux/step
  • 100 Hz and 120 Hz flicker noise rejection

Features

  • Immunity to red glow (≥ 890 nm IREDs)
  • Programmable IRED sink current
  • Intelligent cancellation to reduce cross talk phenomenon
  • Smart persistence scheme to reduce PS response time
  • Selectable for 12- / 16- bit PS output data
  • Fluorescent light flicker immunity
  • Spectrum close to real human eye responses


Target applications

  • Proximity sensing
  • Ambient light sensing
  • User detection
  • 2D and 3D gesture functions supported

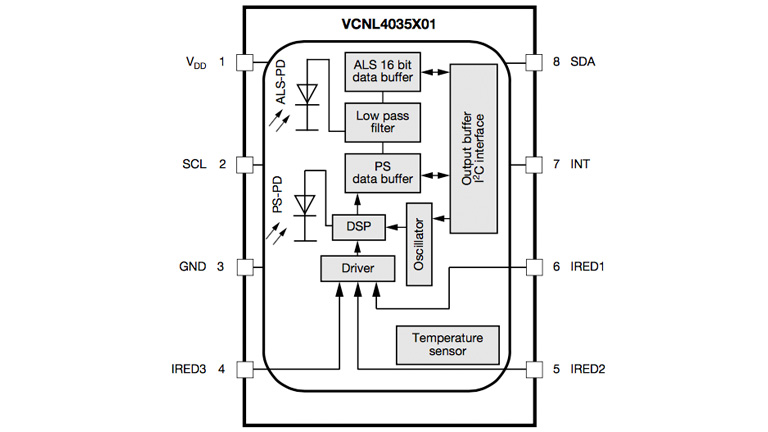

Diagram



Vishay VCNL4035X01
