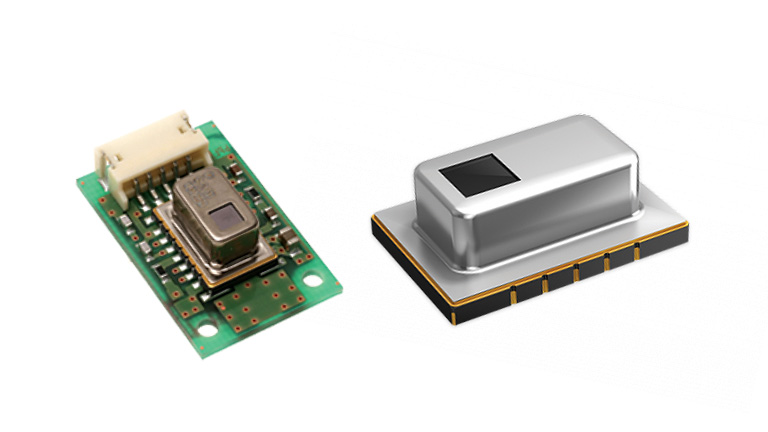

GRID-EYE® Infrared Array Sensor
AMG88xx (High Performance Type) , AMG883642 (Narrow Angle Type)
Panasonic's Grid-EYE® is an 8x8, 64 pixel Infrared Array Sensor. The Grid-EYE Sensor offers digital output (I2C) for thermal presence, direction, and temperature values. A built-in lens includes a 60-degree viewing angle and features a compact SMD design using MEMS thermopile technology.
Features
Grid-eye High Performanace Type
- Temperature Detection of Two-Dimensional Area: 8 × 8 (64 Pixels)
- Digital Output (Capability of Temperature Value Output)
- Compact SMD Package (Adaptively to Reflow Mounting)
- RoHS Compliant
Grid-eye Narrow Angle Type
- Narrow-Angle Field of View of 35.6 Degrees
- Reduced From Standard of 60 Degrees to Allow Better
- Focus for Closer Objects
- Mount on PCB Board
- Module Type
- Environmentally Friendly
- RoHS and REACH Compliant
Applications
- Robotics
- Human detection
- People counting
- Thermal mapping
- Digital signage
- Lighting control
- Medical imaging
Block Diagram
