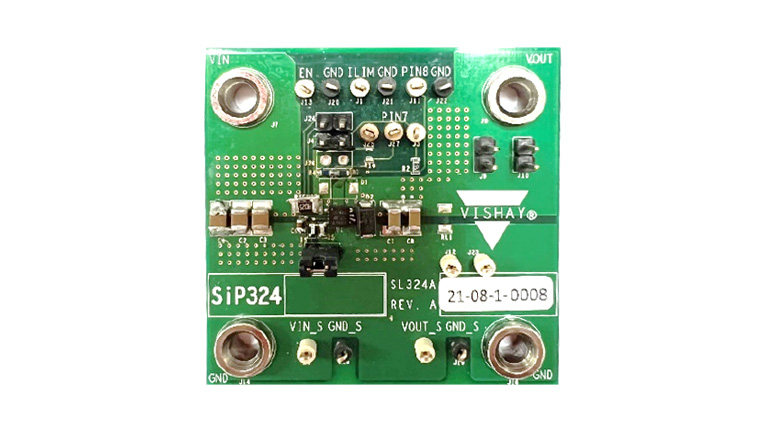

Vishay - SiPQ32434

Vishay certification service includes schematic generation, PCB layout review, hardware debug.

The SiPQ32434 are single channel load switches that integrate multiple control features. They provide increase controllability and reliability with simplified design, protect both power source and the downstream circuitry connected to the switch.

Features

• 2.8V to 24V operation
• 33 mΩ/typ RON @ 12V,
• DC current: 6A , Programmable turn on slew rate
• OTP and 250ns fast short circuit protection response
• Programmable current limit with current fold back for enhanced SOA
• Current limit accuracy of 5% at 1.5A
• OCP triggering without overhead current
• Adjustable OVP, Adjustable UVLO
• <300μA/MAX quiescent current
• Turn on delay <500us
• ESD/HBM: >2kV; SD/CDM: >500V
• Latch, retry, and circuit breaker options.
• Compact TDFN10 3x3mm package

Applications

• AUTOMOTIVE - EV/PEV
• ADAS
