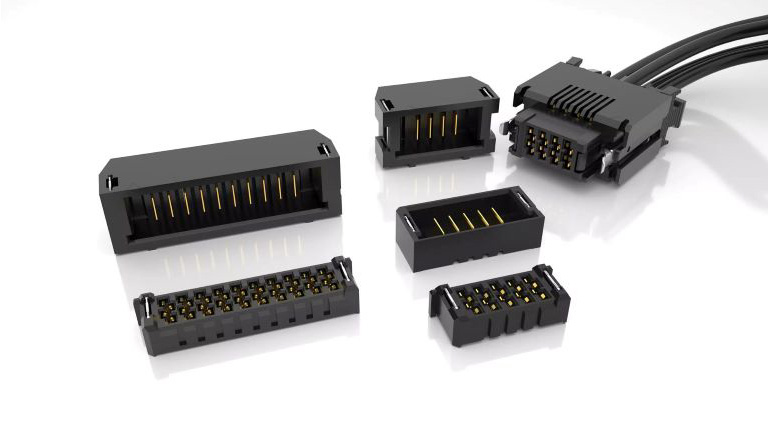

mPOWER® Ultra Micro Power Connectors
Micro 2.00 mm pitch, 18 Amp power blade interconnects are designed for power only or staging a combination power and signal/ground solution.
mPOWER® connector system is the ultimate micro, high-power solution with incredible design flexibility for power-only or power/signal applications. Due to the wide variety of stack heights available, mPOWER® can be easily added to new or existing architectures alongside one of Samtec's high-speed connector systems for a unique two-piece power and signal/ground solution.
Features
- Power only or power/signal with Samtec's high-speed connectors
- Choice of 2 to 10 positions
- 5 – 16 mm, 18 mm and 20 mm stack heights
- Optional weld tabs
- Tin or 10 µ" Gold plated power blades
- 30 µ" Gold plating available to meet specific regulations
- Standard creepage (2.20 mm) and clearance (1.65 mm)
- Selectively loading contacts achieves customer specific requirements
Applications
- Aerospace & Defense
- Automotive & Transportation
- Communications
- Embedded Vision
- Energy
- Healthcare
- Home & Building Automation
- Industrial
- Lighting
- Security & Surveillance
