Power inductor
Magnetically shielded, low EMI

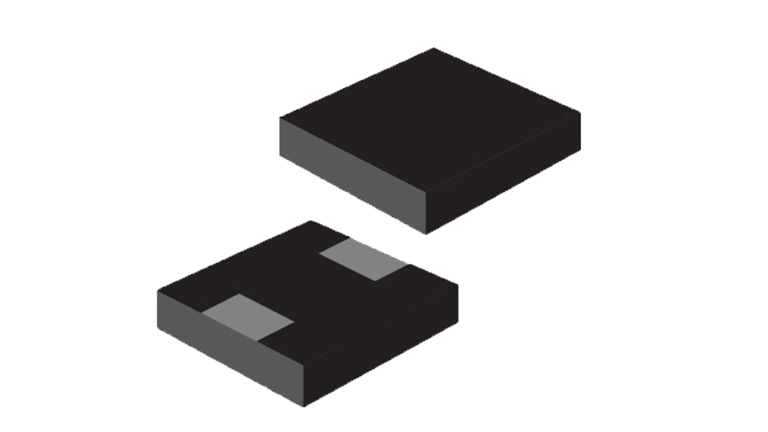

The ECS-MPI2520 high current, low profile, miniature power inductor with a 2.5 mm x 2.0 mm footprint is ideal for industrial, infotainment, and consumer electronics where size is critical. It has height options of 1.0 mm maximum (R0 option) or 1.2 mm maximum (R1 option). The ECS-MPI2520 series has an inductance range from 0.47 µH to 10 µH with a current range from 1.2 A to 4.8 A.
Features
- 2.5 mm x 2.0 mm footprint
- Magnetically shielded, low EMI
- Inductance range from 0.47 µH to 10 µH
- Current range from 1.2 A to 4.8 A
- Temperature range: -40°C ~ +105°C
- MSL 1
- Lead-free; RoHS and REACH compliant
Applications
- Handheld/mobile equipment
- Media devices
- Entertainment
- LED lighting drivers
- Infotainment and telematics
Key components
- ECS-MPI2520R0-1R0-R
- ECS-MPI2520R1-4R7-R
- ECS-MPI2520R0-4R7-R
- ECS-MPI2520R0-3R3-R
- ECS-MPI2520R1-1R5-R
- ECS-MPI2520R1-5R6-R
- ECS-MPI2520R0-1R5-R
- ECS-MPI2520R1-100-R
