Power supplies tree for Xilinx’s Spartan-7

ROHM, together with Avnet developed a reference power supply optimized for Xilinx’s FPGA Spartan-7. And ROHM provides this reference design.

ROHM’s reference power supply design consists of a verified power supply that safely starts and operates Xilinx’s Spartan-7. This reference power supply includes the BD95602MUV power supply IC that delivers superior response characteristics, along with the BD9B305QUZ, BD9F500QUZ, and BD9F800MUZ designed to provide the current capability demanded for each power supply as well as the BD35395EFJ-M DDR3L termination power supply, making it possible to generate supply voltages that meet FPGA voltage accuracy specifications from 12V input while also supporting the necessary startup sequence.

Features

• Reference design materials including circuit diagrams, BOMs, and board layouts are available for download.
• It supports not only Spartan-7 but also Artix-7 power tree.

Target applications

• Security camera

Key components

• BD95602MUV-LB
• BD9F800MUZ
• BD9F500QUZ
• BD9B305QUZ
• BD35395FJ-M

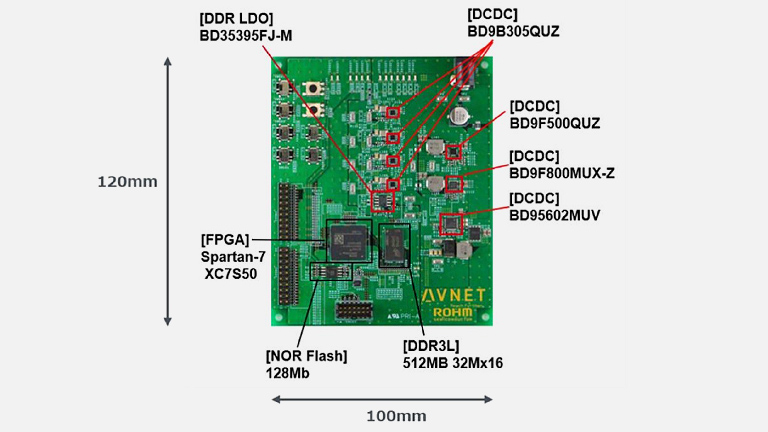

Block diagram
