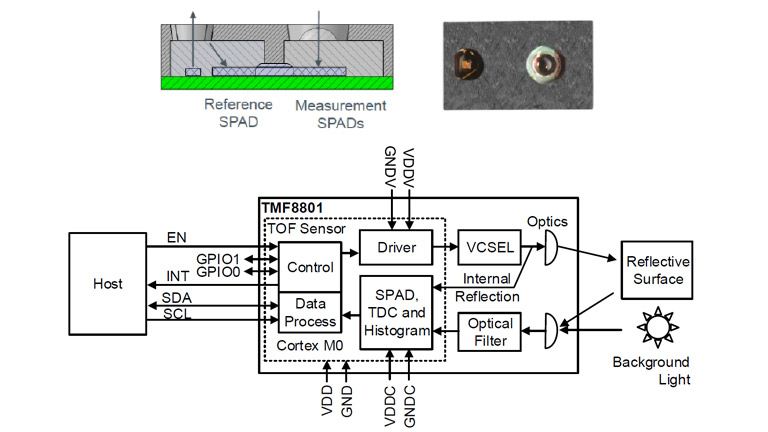

TMF8701/8801

Proximity+distance sensing

TMF8701 enables accurate~6cm detect/release with up to 60cm accurate distance sensing at 60Hz and TMF8801 release with up to 250cm.


Features:

  • Distance estimation by" stop-watch"
  • 1D Direct ToF(dToF):SPAD pixel-based
  • IR illumination:Fast-pulsed, narrow-width light
  • Industry's smallest 1D ToF sensor with lens-2.2*3.6*1.0mm module
  • Cross-talk/smudge rejection due to cover glass through histogram-based architecture
  • Multi-object detection capablility
  • 940nm VCSEL Class 1 eye safety with 21 FOI
  • Superior performance under direct sunlight


Target applications:

  • Mobile
  • Augments face recognition system
  • Distance measurement


Benefits:

  • Distance ranging(ToF)
  • Proximity detection
  • Trigger sensing
  • Simple gesture recognition
