制造商:
Vishay
MAL211838109E3
10uF 63V 6,5x18 125°C 4000h
安富利制造商模型#:
MAL211838109E3
第二制造商零件#: 222211838109
RoHS 10 Compliant
10uF 63V 6,5x18 125°C 4000h
技术参数

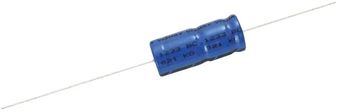

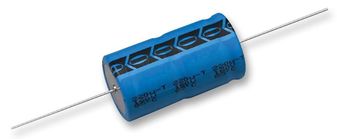

- Polarized aluminum electrolytic capacitors, non-solid electrolyte
- Axial leads, cylindrical aluminum case, insulated with a blue sleeve
- Mounting ring version not available in insulated form
- Taped versions up to case Ø 15 mm x 30 mm available for automatic insertion
- Charge and discharge proof
- Extra long useful life: up to 8000 h at 125°C, high reliability
- Extended temperature range: 125°C (usable up to 150°C)
- Miniaturized, high CV-product per unit volume
技术特性
查找类似的料号|
|
描述 | 值 |
|---|---|---|
|
|
电容 | 10 uF |
|
|
电容容差 | 20% |
|
|
产品宽度 | 6.5 x 18 |
|
|
最高工作温度 | 125 °C |
|
|
ESR | 11 Ohm |
|
|
最低工作温度 | -40 °C |
|
|
纹波电流 | 51.9 mA |
|
|
极性 | Polar |
|
|
电压(DC) | 63 V |
|
|
寿命@温度 | 4000 hours @ 125°C |
|
|
产品直径 | 6.5 mm |
|
|
产品长度 | 18 mm |
ECCN / UNSPSC
| 描述 | 值 |
|---|---|
| ECCN: | EAR99 |
| 计划交货期 B: | PARTS... |
| HTSN: | PARTS... |
