制造商:
Abracon

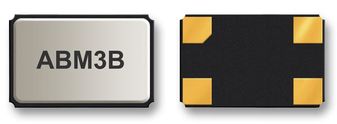

ABM3B-24.000MHZ-R60-D-1-W-T
晶体, 24 MHz, SMD, 5mm x 3.2mm, 25 ppm, 18 pF, 10 ppm, ABM3B系列
安富利制造商模型#:
ABM3B-24.000MHZ-R60-D-1-W-T
RoHS 6 Compliant
晶体, 24 MHz, SMD, 5mm x 3.2mm, 25 ppm, 18 pF, 10 ppm, ABM3B系列
技术参数
- Fundamental mode.
- Suitable for reflow.
- Tight Stability available.
- Ceramic package and metal lid assures high precision and reliability.
- Seam sealing.
技术特性
查找类似的料号|
|
描述 | 值 |
|---|---|---|
|
|
Crystal Mounting | Surface Mount |
|
|
Frequency Tolerance + / - | 10 ppm |
|
|
Crystal Type | Standard |
|
|
Crystal Dimensions | 5mm x 3.2mm x 1.1mm |
|
|
产品范围 | ABM3B Series |
|
|
最高工作温度 | 85 °C |
|
|
Load Capacitance | 18 pF |
|
|
最低工作温度 | -40 °C |
|
|
引脚数 | 4 |
|
|
ESR | 60 Ohm |
|
|
Crystal Frequency | 24 MHz |
|
|
Crystal Case / Package | CSMD |
|
|
Frequency Stability + / - | 25 ppm |
ECCN / UNSPSC
| 描述 | 值 |
|---|---|
| ECCN: | EAR99 |
| 计划交货期 B: | 8541600060 |
| HTSN: | 8541600060 |
