Manufacturer:
Vishay
VLMTG1300-GS08

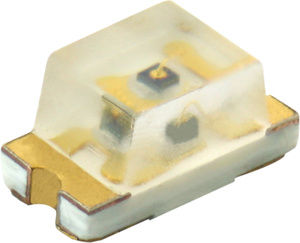

CHIPLED (0603) TRUEGREEN HIGHBRIGHT -e4
Avnet Manufacturer Part #:
VLMTG1300-GS08
RoHS 10 Compliant
The new ChipLED series have been designed in the smallest SMD package. This innovative ChipLED technology opens the way to • smaller products of higher performance • more design in flexibility • enhanced applications
The 0603 LED is an obvious solution for small-scale, high brightness products that are expected to work reliably in an arduous environment.
Key Features
- True green color LED
- Super thin ChipLED with exceptional brightness 1.6 mm x 0.8 mm x 0.8 mm (L x W x H)
- High reliability PCB based
- Wavelength (465 to 475) nm (blue), typ. 525 nm (true green), typ. 571 nm (yellow green), (584.5 to 597) nm (yellow), typ. 605 nm (soft orange), typ. 631 nm (super red)
- InGaN blue available with protection diode, device type VLMB1310 with HBM 8000 V
- AllnGaP and InGaN technology
- Viewing angle: Extremely wide 130°
- Grouping parameter: Luminous intensity, wavelength, VF
- Available in 8 mm tape on 7" diameter reel
- Compatible to IR reflow soldering
- Preconditioning according to JEDEC level 3
Technical Attributes
Find Similar Parts|
|
Description | Value |
|---|---|---|
|
|
Peak Wavelength | 530 nm |
|
|
Lens Dimensions | 1.1x0.8x0.52 mm |
|
|
Max Processing Temp | 260 °C |
|
|
Category | Chip LED |
|
|
Supplier Package | Chip LED |
|
|
LED Material | InGaN |
|
|
Lens Shape Type | Rectangular |
|
|
Dominant Wavelength | 525 nm |
|
|
Mounting | Surface Mount |
|
|
Operating Temperature | -20 to 80 °C |
|
|
Reverse Voltage | 5 V |
|
|
Maximum Power Dissipation | 76 mW |
|
|
Viewing Angle | 130 ° |
|
|
Lead Finish | Matte Tin |
|
|
Color | True Green |
|
|
Type | Chip LED |
|
|
MSL Level | MSL 2A - 4 weeks |
|
|
Number of LEDs | 1 |
|
|
Intensity | 450 mcd |
|
|
Maximum Forward Voltage per Color | 3.6 V |
|
|
Maximum Forward Current | 20 mA |
|
|
Pin Count | 2 |
|
|
Core Part Number | VLMTG1300 |
|
|
Mounting Orientation | Top Mount |
|
|
Product Dimensions | 1.6 x 0.8 x 0.8 mm mm |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| ECCN: | EAR99 |
| SCHEDULE B: | PARTS... |
| HTSN: | PARTS... |
