Manufacturer:
Vishay
SIS407ADN-T1-GE3

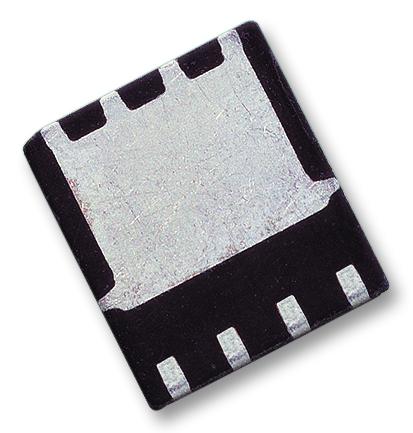

Power MOSFET, P Channel, 20 V, 18 A, 9 mOhm, PowerPAK 1212, 8 Pins, Surface Mount
Avnet Manufacturer Part #:
SIS407ADN-T1-GE3
RoHS 10 Compliant
Power MOSFET, P Channel, 20 V, 18 A, 9 mOhm, PowerPAK 1212, 8 Pins, Surface Mount
Key Features
- TrenchFET® power MOSFET
- Low thermal resistance PowerPAK® package
- 100 % Rg and UIS tested
Technical Attributes
Find Similar Parts|
|
Description | Value |
|---|---|---|
|
|
Rds(on) Test Voltage | 4.5 |
|
|
Transistor Mounting | Surface Mount |
|
|
No. of Pins | 8 |
|
|
Channel Type | P Channel |
|
|
Operating Temperature Max | 150 °C |
|
|
Transistor Case Style | PowerPAK 1212 |
|
|
MSL Level | MSL 1 - Unlimited |
|
|
Continuous Drain Current Id | 18 A |
|
|
Gate Source Threshold Voltage Max | 1 V |
|
|
Drain Source Voltage Vds | 20 V |
|
|
Drain Source On State Resistance | 9 mOhm |
|
|
Power Dissipation | 39.1 W |
|
|
Product Range | TrenchFET Series |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| ECCN: | EAR99 |
| SCHEDULE B: | PARTS... |
| HTSN: | PARTS... |
