Manufacturer:
Vishay
ES2B-E3/52T

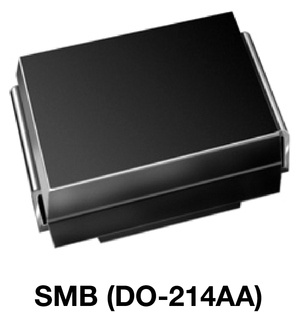

Fast / Ultrafast Diode, 100 V, 2 A, Single, 900 mV, 30 ns, 50 A, DO-214AA (SMB)
Avnet Manufacturer Part #:
ES2B-E3/52T
RoHS 10 Exempt
Fast / Ultrafast Diode, 100 V, 2 A, Single, 900 mV, 30 ns, 50 A, DO-214AA (SMB)
Key Features
- Glass passivated pallet chip junction
- Ideal for automated placement
- Ultrafast recovery times for high efficiency
- Low forward voltage, low power losses
- High forward surge capability
- Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C
- AEC-Q101 qualified available - Automotive ordering code: base P/NHE3
Technical Attributes
Find Similar Parts|
|
Description | Value |
|---|---|---|
|
|
No. of Pins | 2 |
|
|
Diode Configuration | Single |
|
|
Operating Temperature Max | 150 °C |
|
|
Diode Case Style | DO-214AA (SMB) |
|
|
Forward Surge Current | 50 A |
|
|
Reverse Recovery Time | 30 ns |
|
|
Repetitive Peak Reverse Voltage | 100 V |
|
|
Average Forward Current | 2 A |
|
|
Forward Voltage Max | 900 mV |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| ECCN: | EAR99 |
| SCHEDULE B: | PARTS... |
| HTSN: | PARTS... |
