DG2535EDQ-T1-GE3

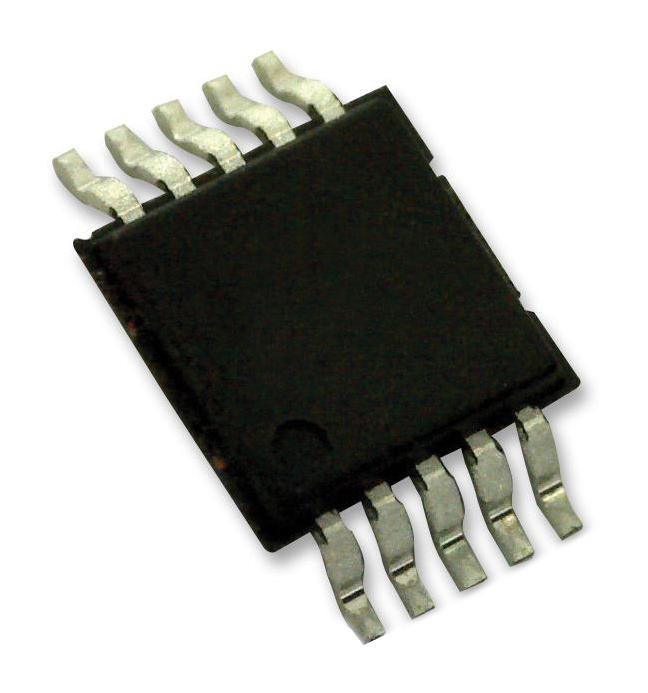

Analog Switch Dual SPDT 10-Pin MSOP T/R
Avnet Manufacturer Part #:
DG2535EDQ-T1-GE3
RoHS 10 Compliant
Low voltage dual SPDT analogue switch. This device is suitable for audio and video signal routing, battery operated systems, relay replacement, automatic test equipment, process control and automation, data acquisition systems, meters and instruments, medical and healthcare systems, PCMCIA cards and communication systems.
Key Features
- 1.65V to 5.5V single power operation
- 2 separate control pins for independent control of the 2 SPDT switches
- Low switch resistance
- Low voltage logic compatible
- Wide operation voltage range
- Fast switching time
Technical Attributes
Find Similar Parts|
|
Description | Value |
|---|---|---|
|
|
Operating Temperature Min | -40 |
|
|
IC Case / Package | MSOP |
|
|
IC Mounting | Surface Mount |
|
|
Operating Temperature Max | 85 |
|
|
No. of Channels | 2 |
|
|
Product Range | DG Series |
|
|
No. of Pins | 10 |
|
|
Switch Configuration | SPDT |
|
|
On Resistance Max | 700 |
|
|
Supply Voltage Range | 1.65V to 5.5V |
|
|
Power Supply Type | Single Supply |
|
|
IC Function | Analog Switch |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| ECCN: | EAR99 |
| SCHEDULE B: | 8542390000 |
| HTSN: | 8542390001 |
