Manufacturer:
Vishay
BYG10M-E3/TR
1.5A,1000V,STD,AVALANCHE,SMD
Avnet Manufacturer Part #:
BYG10M-E3/TR
RoHS 10 Exempt
1.5A,1000V,STD,AVALANCHE,SMD
Key Features
- Low profile package
- Ideal for automated placement
- Controlled avalanche characteristics
- Glass passivated junction
- Low reverse current
- High surge current capability
- Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C
- AEC-Q101 qualified
Technical Attributes
Find Similar Parts|
|
Description | Value |
|---|---|---|
|
|
Average Forward Current | 1.5 |
|
|
Repetitive Peak Reverse Voltage | 1 |
|
|
Forward Voltage Max | 1.15 |
|
|
No. of Pins | 2 |
|
|
Forward Surge Current | 30 |
|
|
Diode Configuration | Single |
|
|
Reverse Recovery Time | 4 |
|
|
Operating Temperature Max | 150 °C |
|
|

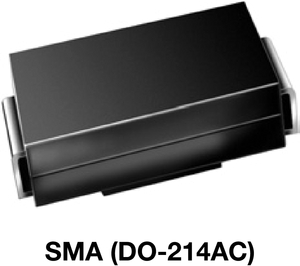

Diode Case Style | DO-214AC (SMA) |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| ECCN: | EAR99 |
| SCHEDULE B: | PARTS... |
| HTSN: | PARTS... |
