Manufacturer:
Vishay
135D336X0050C2
135D336X0050C2
Avnet Manufacturer Part #:
135D336X0050C2
RoHS Non-Compliant
135D336X0050C2
Key Features

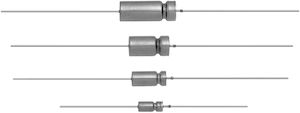

- Axial through-hole terminations: standard tin / lead (SnPb), 100 % tin (RoHS-compliant) available
- Standard and extended ratings
- Model 135D tantalum-case electrolytic capacitors incorporate the advantages of all the varieties of electrolytic capacitors and eliminate most of the disadvantages. These units have a 3 V reverse voltage capability at +85 °C and a higher ripple current capability than any other electrolytic type with similar combinations of capacitance and case size.
- Designed for the aerospace applications, this capacitor was developed under partial sponsorship of the Marshall Space Flight Center, National Aeronautics and Space Administration. The capacitors have a high resistance to damage from shock and vibration. Extended range ratings and high temperature designs are available.
- Model 135D capacitors are commercial equivalents of Tansitor style; AQ, AR, HAQ, HAR, Mallory-NACC Style; TLT, TXT, THT, THX and Military Style CLR79 and CLR81, designed to meet the performance requirements of Military Specification MIL-PRF-39006/22/25. Capacitors to meet MIL-PRF-39006/22/25 should be ordered by part numbers shown in that specification.
Technical Attributes
Find Similar Parts|
|
Description | Value |
|---|---|---|
|
|
Product Diameter | 5.56 mm |
|
|
Product Length | 13.08 mm |
|
|
Voltage(DC) | 50 V |
|
|
Capacitance | 33 uF |
|
|
Operating Temperature Min | -55 °C |
|
|
Ripple Current | 700 mA |
|
|
ESR | 5 Ohm |
|
|
Operating Temperature Max | 125 °C |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| ECCN: | EAR99 |
| SCHEDULE B: | 8532210020 |
| HTSN: | 8532210020 |
