Manufacturer:
TE Connectivity
RT314024

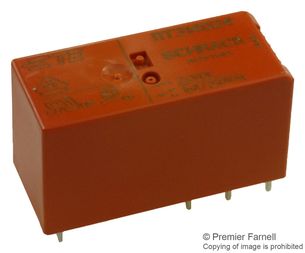

Power Relay SPDT 400VAC 24VDC Through Hole Box/Tube
Avnet Manufacturer Part #:
9-1393239-8
Secondary Manufacturer Part #: RT314024
RoHS 10 Compliant
Power Relay SPDT 400VAC 24VDC Through Hole Box/Tube
Technical Attributes
Find Similar Parts|
|
Description | Value |
|---|---|---|
|
|
Product Dimensions | 29 x 12.7 x 15.7 mm |
|
|
Operating Temperature | -40 to 70 °C |
|
|
Coil Current | 16.66 mA |
|
|
Series Name | RT3 |
|
|
Coil Resistance | 1.44 kOhm |
|
|
Relay Construction | Non-Latching |
|
|
Maximum Pick-Up Voltage | 16.8 Vdc |
|
|
Maximum Power Rating | 4 kVA |
|
|
Maximum AC Voltage Rating | 400 V |
|
|
Operate Time | 8 ms |
|
|
Maximum Current Rating AC | 16 A |
|
|
Mounting | Through Hole |
|
|
Termination Method | PC Pins |
|
|
Type | Power Relay |
|
|
Supplier Package | DIP |
|
|
DC Coil Voltage | 24 V |
|
|
Product Length | 29 mm |
|
|
Minimum Dropout Voltage | 2.4 Vdc |
|
|
Max Processing Temp | 260 °C |
|
|
Contact Material | Nickel-Silver |
|
|
Contact Arrangement | SPDT |
|
|
Pin Count | 8 |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| ECCN: | EAR99 |
| SCHEDULE B: | PARTS... |
| HTSN: | PARTS... |
