Manufacturer:
TE Connectivity
770904-1

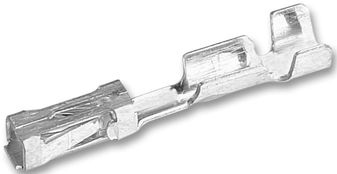

Contact Socket Crimp Straight Cable Mount
Avnet Manufacturer Part #:
770904-1
RoHS 10 Compliant
Contact Socket Crimp Straight Cable Mount
Technical Attributes
Find Similar Parts|
|
Description | Value |
|---|---|---|
|
|
Termination Method | Crimp |
|
|
Body Orientation | Straight |
|
|
Contact Material | Brass |
|
|
Lead Finish | Tin |
|
|
Wire Size | 22 to 18, 22 AWG |
|
|
Connector Type | Power Connector |
|
|
Operating Temperature | -55 to 105 °C |
|
|
Mounting | Cable Mount |
|
|
Product Dimensions | 17.25 x 3.81 x 4.42 mm mm |
|
|
Product Length | 17.25 mm |
|
|
Contact Type | Power |
|
|
Conductor Area CSA | 0.3 to 0.9 mm² |
|
|
Maximum Current Rating/Contact | 11.2 A |
|
|
Series Name | 770904 |
|
|
Contact Plating | Pre-Tin |
|
|
Gender | Receptacle |
|
|
Plating Thickness | 0.76 um |
|
|
Maximum Contact Resistance | 20 mOhm |
|
|
Shielded | No |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| ECCN: | EAR99 |
| SCHEDULE B: | PARTS... |
| HTSN: | PARTS... |
