Manufacturer:
TE Connectivity

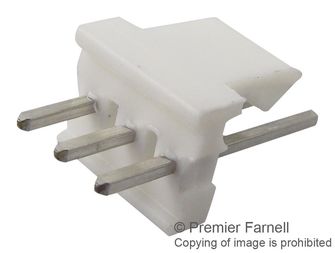

640456-3
Conn Partial Shrouded Header 3 POS 2.54mm Solder ST Through Hole
Avnet Manufacturer Part #:
640456-3
RoHS 10 Compliant
Conn Partial Shrouded Header 3 POS 2.54mm Solder ST Through Hole
Technical Attributes
Find Similar Parts|
|
Description | Value |
|---|---|---|
|
|
Contact Material | Copper Alloy |
|
|
Maximum Current Rating/Contact | 5 A |
|
|
Number of Rows | 1 |
|
|
Body Orientation | Straight |
|
|
Product Length | 7.62 mm |
|
|
Type | Partial Shrouded |
|
|
Termination Method | Solder |
|
|
Housing Color | Natural |
|
|
Pitch | 2.54 mm |
|
|
Operating Temperature | -55 to 105 to 105 °C |
|
|
Max Processing Temp | 265 |
|
|
Product Dimensions | 7.62 x 5.72 x 10.03 mm |
|
|
Base/Housing Material | Thermoplastic Polyester |
|
|
Series Name | 640456 |
|
|
Number of Contacts | 3 |
|
|
Contact Plating | Matte Tin Over Nickel |
|
|
Lead Finish | Matte Tin Over Nickel |
|
|
Maximum Contact Resistance | 10 mOhm |
|
|
Mounting | Through Hole |
|
|
Gender | Header |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| ECCN: | EAR99 |
| SCHEDULE B: | PARTS... |
| HTSN: | PARTS... |
