Manufacturer:
TE Connectivity

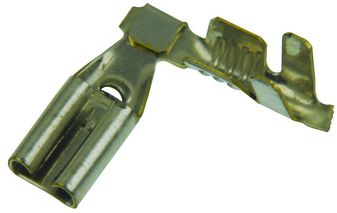

62336-1
Quick Disconnect Terminal 18-22AWG RCP 10.92mm Pre-Tin Strip
Avnet Manufacturer Part #:
62336-1
RoHS 10 Compliant
Quick Disconnect Terminal 18-22AWG RCP 10.92mm Pre-Tin Strip
Key Features
- Full line of premier, budget, LIF, moldable and hermetic uninsulated receptacles
- Straight, right-angle and receptacle and tab combinations available
- Receptacles available in .110 sizes
- Style : B
- Available in 22-18 AWG wire ranges
- Insulation Diameter : .060 - .100, 1.52 - 2.54
- Receptacles mate with .032 thick tabs
- Available with or without secondary wire support
- Base materials brass, phosphor bronze and steel available
- Tin, silver and nickel plated products available
- Products designed and manufactured to meet UL 310 specifications
- Products designed and manufactured to meet CSA C22.2 specifications
Technical Attributes
Find Similar Parts|
|
Description | Value |
|---|---|---|
|
|
Product Length | 10.92 mm |
|
|
Product Dimensions | 10.92 mm |
|
|
Wire Size | 22 to 18, 22 AWG |
|
|
Lead Finish | Tin |
|
|
Plating | Pre-Tin |
|
|
Tab Size | 2.27 mm² |
|
|
Type | Quick Disconnect Terminal |
|
|
Gender | Receptacle |
|
|
Body Material | Brass |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| ECCN: | EAR99 |
| SCHEDULE B: | 8536904000 |
| HTSN: | 8536904000 |
