Manufacturer:
TE Connectivity
5747250-4

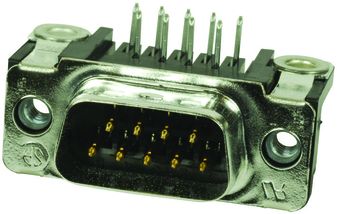

D Sub Connector, DB9, Standard, Plug, AMPLIMITE HD-20, 9 Contacts, DE, Solder
Avnet Manufacturer Part #:
5747250-4
RoHS 10 Compliant
The 5747250-4 is a 9-position 2-row standard right angle D-sub Plug with gold-plated brass contacts, UL94V-0-rated black thermoplastic housing and 4-40 UNC zinc-plated threaded inserts. The HD-20 series right-angle posted connector has tin-plated carbon steel shell, tin-plated brass eyelet and grounding straps.
Key Features
- Preloaded
- Mounting holes PCB mount retention
- UL94V-0 Flammability rating
Technical Attributes
Find Similar Parts|
|
Description | Value |
|---|---|---|
|
|
Gender | Pin |
|
|
Mounting | Through Hole |
|
|
Number of Contacts | 9 POS |
|
|
Type | D-Subminiature |
|
|
Number of Ports | 1 |
|
|
Base/Housing Material | Nylon|Polyester |
|
|
Max Processing Temp | 265 |
|
|
Operating Temperature | -55 to 105 °C |
|
|
Pitch | 2.7400 mm |
|
|
Lead Finish | Tin |
|
|
Body Orientation | Right Angle |
|
|
Termination Method | Solder |
|
|
Product Dimensions | 30.81 x 18.62 x 12.55 mm |
|
|
Contact Plating | Gold |
|
|
Product Length | 30.81 mm |
|
|
Number of Terminals | 9 |
|
|
Contact Material | Brass |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| ECCN: | EAR99 |
| SCHEDULE B: | 8536694040 |
| HTSN: | 8536694040 |
