Manufacturer:
TE Connectivity
2305018-2

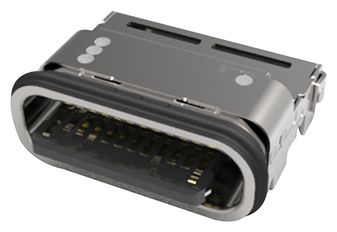

Conn USB Type C Receptacle 24 POS 0.5mm RA Surface Mount Single Port T/R
Avnet Manufacturer Part #:
2305018-2
RoHS 10 Compliant
Conn USB Type C Receptacle 24 POS 0.5mm RA Surface Mount Single Port T/R
Technical Attributes
Find Similar Parts|
|
Description | Value |
|---|---|---|
|
|
Lead Finish | Gold Flash Over Nickel |
|
|
Product Length | 9.5 mm |
|
|
Gender | Receptacle |
|
|
Contact Material | Copper Alloy |
|
|
Body Orientation | Right Angle |
|
|
Pitch | 0.5 mm |
|
|
Mounting | Surface Mount |
|
|
Max Processing Temp | 260 °C |
|
|
Base/Housing Material | Thermoplastic |
|
|
Type | USB Type C |
|
|
Number of Ports | 1 |
|
|
Series Name | 2305018 Series |
|
|
USB | USB3.1 |
|
|
Product Dimensions | 9.5 x 8.65 x 4.06 mm |
|
|
Number of Contacts | 24 |
|
|
Contact Plating | Gold Over Nickel |
|
|
Operating Temperature | -30 to 85 °C |
