Manufacturer:
TE Connectivity
Product Category:
Connectors,
Discrete Housing Connectors
205206-3

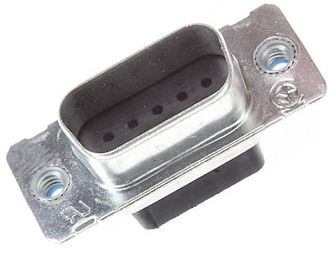

D Sub Connector Housing, Tin & Dimple, 15 Ways, D Sub, 2, AMPLIMITE HDP-20 Series, Plug, Steel Body
Avnet Manufacturer Part #:
205206-3
RoHS 10 Compliant
The 205206-3 is a 15-position Plug Housing with tin-plated steel shell and is used with crimp snap-in contacts. The Amplimite HDP-20 series connector with crimp snap-in contacts allows loading of only the number of contacts being used and available with shielding hardware and enclosure kits.
Key Features
- UL94V-0 Flammability rating
- High performance
Technical Attributes
Find Similar Parts|
|
Description | Value |
|---|---|---|
|
|
Body Orientation | Straight |
|
|
Operating Temperature | -55 to 105 °C |
|
|
Product Dimensions | 39.14 x 17.7 x 12.54 mm |
|
|
Product Length | 39.14 mm |
|
|
Mounting | Cable Mount |
|
|
Base/Housing Material | Steel |
|
|
Gender | Plug |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| ECCN: | EAR99 |
| SCHEDULE B: | PARTS... |
| HTSN: | PARTS... |
