Manufacturer:
TE Connectivity
Product Category:
Connectors,
Discrete Housing Connectors
205204-9

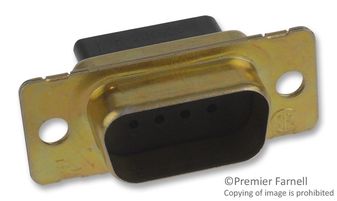

D Sub Connector Housing, 9 Ways, D Sub, DE, AMPLIMITE HDP-20 Series, Plug, Steel Body
Avnet Manufacturer Part #:
205204-9
RoHS 10 Compliant
The 205204-9 is a 9-position HDP-20 Snap-In Crimp D-sub Connector with tin-plated copper contacts and steel body. The shell is made of zinc plated steel and has 1 shell size. This plug is suitable for use with crimp snap-in machine applied terminations assure highest production rates. Intermateable with any size 20 D-sub connector dimensionally complying with MIL-C-24308. Crimp snap-in contacts allows loading of only the number of contacts being used.
Key Features
- 20 Contact size
- High performance, precision formed crimp contacts
Technical Attributes
Find Similar Parts|
|
Description | Value |
|---|---|---|
|
|
Gender | Plug |
|
|
Product Length | 30.81 mm |
|
|
Body Orientation | Straight |
|
|
Base/Housing Material | Nylon |
|
|
Operating Temperature | -55 to 105 °C |
|
|
Housing Color | Black |
|
|
Type | Housing |
|
|
Maximum Voltage Rating | 250 |
|
|
Number of Rows | 2 |
|
|
Number of Contacts | 9 POS |
|
|
Wire Size | 28 to 18, 28 AWG |
|
|
Product Dimensions | 30.81 x 17.7 x 12.54 mm |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| ECCN: | EAR99 |
| SCHEDULE B: | PARTS... |
| HTSN: | PARTS... |
