Manufacturer:
TE Connectivity
Product Category:
Connectors,
Discrete Housing Connectors
1-480349-0
Connector Housing, Commercial MATE-N-LOK, Plug, 1 Ways, 5.08 mm, Commercial MATE-N-LOK Connectors
Avnet Manufacturer Part #:
1-480349-0
RoHS 10 Compliant

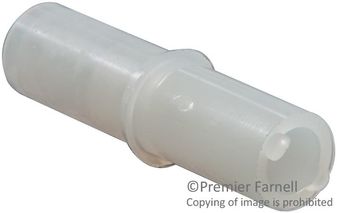

The 1-480349-0 is a 1-way 1-row natural color free-hanging Socket Housing (plug) made of nylon. It is ideal for commercial MATE-N-LOK connectors and pin (cap) housing.
Key Features
- UL94V-2 Flammability rating
- 250VAC Operating voltage
- -55 to 105°C Operating temperature range
Technical Attributes
Find Similar Parts|
|
Description | Value |
|---|---|---|
|
|
Wire Size | 30 to 14, 30 AWG |
|
|
Operating Temperature | -55 to 105 °C |
|
|
Housing Color | Natural |
|
|
Body Orientation | Straight |
|
|
Product Length | 6.73 mm |
|
|
Base/Housing Material | Nylon |
|
|
Product Dimensions | 6.73 x 23.12 x 6.73 mm |
|
|
Gender | Plug |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| ECCN: | EAR99 |
| SCHEDULE B: | PARTS... |
| HTSN: | PARTS... |
