Manufacturer:
TE Connectivity
1-350944-0

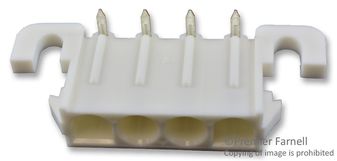

Conn Shrouded Header 4 POS 6.35mm Solder Right Angle Through Hole
Avnet Manufacturer Part #:
1-350944-0
RoHS 10 Compliant
Conn Shrouded Header 4 POS 6.35mm Solder Right Angle Through Hole
Key Features
- Pins and sockets can be intermixed in the same housing
- Positive polarization
- Rear cavity identification
- Contacts completely enclosed in housings
- Positive locking housings
- Insulation capability to .200 [5.08] diameter
- Removable, crimp snap-in contacts
- Low contact mating force
- Contacts accept 30-10 AWG [.05-5.0 mm2] wire sizes
- Contacts available with pretin or gold plating
- Dual locking lances provide optimum contact stability
- Panel mount or free-hanging
- Mate with Universal MATE-N-LOK II Housings
- Available in UL 94V-O flame retardant material. Meets the material requirements of table 25.1 of U.L. Standard 1410 (television receivers and video products)
- Not for interrupting current
- Harness to PC Board capability using pin or socket headers
- Pin and socket headers are available in both vertical and right-angle style
- Solderability — headers meet MIL-STD 202 Method 208
- Contacts are on .250 [6.35] centerline spacing
Technical Attributes
Find Similar Parts|
|
Description | Value |
|---|---|---|
|
|
Lead Finish | Tin |
|
|
Termination Method | Solder |
|
|
Housing Color | Natural |
|
|
Product Dimensions | 44.32 x 17.27 x 9.14 mm |
|
|
Contact Plating | Tin |
|
|
Product Length | 44.32 mm |
|
|
Max Processing Temp | 265 |
|
|
Number of Terminals | 4 |
|
|
Base/Housing Material | Nylon |
|
|
Type | Shrouded |
|
|
Pitch | 6.35 mm |
|
|
Operating Temperature | -40 to 105 °C |
|
|
Maximum Current Rating/Contact | 12 A |
|
|
Number of Ports | 1 |
|
|
Contact Material | Phosphor Bronze |
|
|
Maximum Contact Resistance | 5 mOhm |
|
|
Series Name | 350944 |
|
|
Mounting | Through Hole |
|
|
Body Orientation | Right Angle |
|
|
Number of Rows | 1 |
|
|
Number of Contacts | 4 |
|
|
Gender | Header |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| ECCN: | EAR99 |
| SCHEDULE B: | PARTS... |
| HTSN: | PARTS... |
