Manufacturer:
TE Connectivity
Product Category:
Connectors,
Discrete Housing Connectors
1-1971772-7

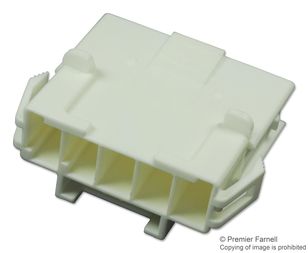

Conn Housing RCP 5 POS 6mm ST Cable Mount
Avnet Manufacturer Part #:
1-1971772-7
RoHS 10 Compliant
The new Power Triple Lock connector has been developed for improved power and signal applications. the connector has many added customer benefits for performance assurance.
With a centerline space of 6.0mm, the reduced size of the Power Triple lock connector offers high performance with a functional design.
Key Features
- 1x5 Cap Connector
- Panel Mount
- Audible 'lock' catch provides positive feedback when Cap & Plug are mated, while the ribs surrounding the latch prevent wires from becoming snagged underneath the latch
- Optional Connector-position Assurance (CPA) ensures that, once engaged, the Power Triple Lock connector cannot be mistakenly disengaged
- Optional Terminal-position Assurance (TPA) ensures that contacts are fully seated within the housing and provides an added measure against contact backout
- Color: Natural
Technical Attributes
Find Similar Parts|
|
Description | Value |
|---|---|---|
|
|
Mounting | Cable Mount |
|
|
Gender | Receptacle |
|
|
Pin Count | 5 |
|
|
Housing Color | Natural |
|
|
Body Orientation | Straight |
|
|
Operating Temperature | -55 to 105 °C |
|
|
Pitch | 6.0000 mm |
|
|
Base/Housing Material | PBT (Polybutylene Terephthalate) |
|
|
Type | Housing |
|
|
Number of Rows | 1 |
|
|
Product Length | 33.7 mm |
|
|
Product Dimensions | 33.7 x 32.65 x 14.95 |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| ECCN: | EAR99 |
| SCHEDULE B: | 8536904000 |
| HTSN: | 8538906000 |
