Manufacturer:
TE Connectivity
Product Category:
Connectors,
Power Connectors

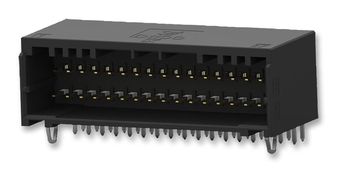

1-1827876-6
Conn Power HDR 12 POS 2.5mm Solder RA Thru-Hole 12 Terminal 1 Port Tube
Avnet Manufacturer Part #:
1-1827876-6
RoHS 10 Compliant
D-1000 Series are the smallest connectors for signal lines in the Dynamic connector series.
D-1000 Series occupies 40% less volume than the D-2000 Series, so it can contribute to customers’ equipment miniaturizing requirement.
D-1000 Series receptacle and tab contacts have a wide wire range, 30 through 18 AWG with 2.2 mm wire insulation diameter maximum, which is commonly used for electrical cabinet wiring.
D-1000 Series housings consist of D-1110 Series for 2.0 mm centerline and D-1200 Series for 2.5 mm centerline as the standard type. In addition, D-1500 Series housings are for 3.5 mm centerline sensor applications or branch connection of power lines.
D-1000 Series has gold plated contacts as standard and also tin plated contacts for economical market needs. Customers have a choice of contacts depending on specifications, application, and cost.
Crimping hand tool features a changeable die set structure. It offers minimal installation tooling cost. This tooling system will evolve to D-2000, D-3000 and D-4000 Series in the future.
Key Features
- Header and tab connectors have enough length from the tip of contact to top of housing to help prevent contact from bending when receptacle mates to tab connector.
- D-1000 has housing lance structure. Without contact lance, it is expected to avoid contact lance broken in terminal process handling
- Clear identification of circuit number provides for correct wiring
- Metal retention leg assembly tab header helps prevent damage from unexpected cable tension
- Housing lock design
Technical Attributes
Find Similar Parts|
|
Description | Value |
|---|---|---|
|
|
Gender | Header |
|
|
Product Length | 17.6 mm |
|
|
Type | Power |
|
|
Lead Finish | Tin |
|
|
Product Dimensions | 17.6 x 15 x 11.8 mm |
|
|
Contact Plating | Gold |
|
|
Body Orientation | Right Angle |
|
|
Termination Method | Solder |
|
|
Max Processing Temp | 265 |
|
|
Operating Temperature | -55 to 105 °C |
|
|
Pitch | 2.5000 mm |
|
|
Base/Housing Material | Polyester |
|
|
Number of Ports | 1 |
|
|
Mounting | Through Hole |
|
|
Contact Material | Copper Alloy |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| ECCN: | EAR99 |
| SCHEDULE B: | PARTS... |
| HTSN: | PARTS... |
