Manufacturer:
TE Connectivity
1-1393210-8

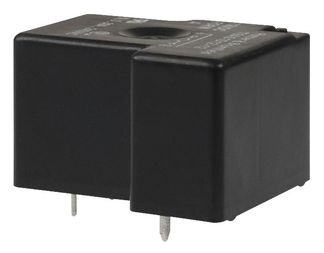

Power Relay SPST-NO 277VAC 24VDC Through Hole Box/Bundle/Tray
Avnet Manufacturer Part #:
1-1393210-8
Secondary Manufacturer Part #: T9AS1D12-24
RoHS 10 Exempt
Power Relay SPST-NO 277VAC 24VDC Through Hole Box/Bundle/Tray
Key Features
- 30A switching in 1 form A (NO) and 20A in 1 form C (CO)
- Plastic sealed case available
- Meets UL 508 and 873 spacing - 3.18mm through air, 6.36mm over surface
- Option for load connections via 0.250”” (6.35mm) Q.C. terminals
- UL class F insulation system standard
Technical Attributes
Find Similar Parts|
|
Description | Value |
|---|---|---|
|
|
Coil Current | 41.66 mA |
|
|
Series Name | T9A |
|
|
Contact Arrangement | SPST-NO |
|
|
Coil Resistance | 576 Ohm |
|
|
Operate Time | 15 ms |
|
|
Mounting | Through Hole |
|
|
Maximum Current Rating AC | 30 A |
|
|
Relay Construction | Non-Latching |
|
|
Operating Temperature | -55 to 85 °C |
|
|
Maximum Pick-Up Voltage | 18 Vdc |
|
|
Maximum AC Voltage Rating | 277 V |
|
|
Type | Power Relay |
|
|
DC Coil Voltage | 24 V |
|
|
Minimum Dropout Voltage | 2.4 Vdc |
|
|
Contact Material | Silver Cadmium Oxide |
|
|
Termination Method | PC Pin |
|
|
Max Processing Temp | 250 °C |
|
|
Pin Count | 4 |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| ECCN: | EAR99 |
| SCHEDULE B: | PARTS... |
| HTSN: | PARTS... |
