ASP-134486-01

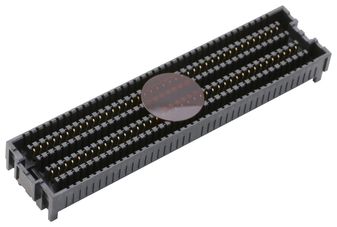

Mezzanine Connector, Vita 57 XMC, Array, Female, 1.27 mm, 10 Rows, 400 Contacts, Surface Mount

ASP-134486-01 in Stacking Board Connectors by Samtec
Samtec
Manufacturer: Samtec
Avnet Manufacturer Part #: ASP-134486-01
Secondary Manufacturer Part #:  79X1311
RoHS 10 Compliant

The ASP-134486-01 is a 400-pole 10-row 1.27mm Female FMC Connector with gold-plated copper alloy contacts. The VITA 57 Field Programmable Mezzanine Card (FMC) standard provides a mechanical standard for I/O mezzanine modules. This standard introduces a methodology that shall allow the front panel IO of IEEE 1101 form factor cards to be configured, via mezzanine boards.

Key Features

  • Lead-free solder
  • High pin count

Technical Attributes

Find Similar Parts
Description Value
Base/Housing Material LCP (Liquid Crystal Polymer)
Pitch 1.27 mm
Housing Color Black
Termination Method Solder
Body Orientation Straight
Number of Rows 10
Gender Receptacle
Contact Material Copper Alloy
MSL Level MSL 1 - Unlimited
Number of Contacts 400
Maximum Current Rating/Contact 2.7 A
Series Name ASP
Product Dimensions 57.46 x 13.23 x 6.55 mm
Lead Finish Gold Over Nickel
Operating Temperature -55 to 125 °C
Contact Plating Gold Over Nickel
Mounting Surface Mount
Product Length 57.46 mm

ECCN / UNSPSC / COO

Description Value
ECCN: EAR99
SCHEDULE B: 8536694040
HTSN: 8536694040
