Manufacturer:
Rohm

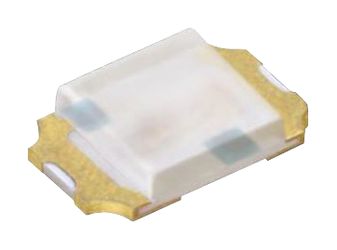

SML-P13PTT86R
LED, Green, SMD, 0402 [1005 Metric], 20 mA, 2.1 V, 560 nm
Avnet Manufacturer Part #:
SML-P13PTT86R
RoHS 10 Compliant
ROHM's PICOLED-Using its second-to-none merits from ultra-small & ultra-thin configuration,ultra-fine LED matrices beyond common sense can be made, boosting the level of expression ultimately. Also, this device is indispensable for future design-in for whatever application requiring downsizing.
Key Features
- PICOLED serise
- 1.0x0.6(t=0.2)mm :Ultra-small & ultra-thin package
Technical Attributes
Find Similar Parts|
|
Description | Value |
|---|---|---|
|
|
Category | Chip LED |
|
|
Supplier Package | 0402 |
|
|
Mounting | Surface Mount |
|
|
Reverse Voltage | 5 V |
|
|
Maximum Power Dissipation | 33 mW |
|
|
Lens Dimensions | 0.6 x 0.6 x 0.12 mm |
|
|
Maximum Forward Voltage per Color | 2.9 V |
|
|
Operating Temperature | -40 to 85 °C |
|
|
Mounting Orientation | Top Mount |
|
|
Lens Shape Type | Square |
|
|
Screening Level | Industrial |
|
|
Color Temperature | x=0.3/y=0.3 K |
|
|
Maximum Forward Current | 10 mA |
|
|
Intensity | 150 mcd |
|
|
Product Dimensions | 1 x 0.6 x 0.2 |
|
|
Pin Count | 2 |
|
|
Type | Uni-Color |
|
|
Color | White |
|
|
LED Material | InGaN |
|
|
Number of LEDs | 1 |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| ECCN: | EAR99 |
| SCHEDULE B: | 8541402000 |
| HTSN: | 8541402000 |
