Manufacturer:
Rohm

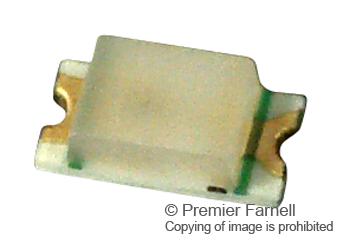

SML-D12V8WT86
LED Single Chip Red 630nm 20mA 2-Pin 0603 [1608 Metric]
Avnet Manufacturer Part #:
SML-D12V8WT86
RoHS 10 Compliant
ROHM's chip LED lineup consists of standard type,top-view type, side-view type and reverse-mount type.
Key Features
・EXCELED™ serise
・0603(1608mm) size
・Thin packagetype chip LED
・0603(1608mm) size
・Thin packagetype chip LED
Technical Attributes
Find Similar Parts|
|
Description | Value |
|---|---|---|
|
|
Type | Chip LED |
|
|
Maximum Forward Current | 20 mA |
|
|
Operating Temperature | -40 to 85 to 85 °C |
|
|
Lens Dimensions | 1.2x0.8x0.37 mm |
|
|
Category | Chip LED |
|
|
Max Processing Temp | 260 |
|
|
Pin Count | 2 |
|
|
Maximum Forward Voltage per Color | 2.7 V |
|
|
Supplier Package | 0603 [1608 Metric] |
|
|
Color | Red |
|
|
Maximum Power Dissipation | 54 mW |
|
|
Reverse Voltage | 5 V |
|
|
Mounting | Surface Mount |
|
|
Lens Shape Type | Rectangular |
|
|
Number of LEDs | 1 |
|
|
Screening Level | Industrial |
|
|
Intensity | 40 mcd |
|
|
Dominant Wavelength | 630 nm |
|
|
Mounting Orientation | Top Mount |
|
|
Product Dimensions | 1.6 x 0.8 x 0.55 mm |
|
|
Series Name | SML-D12V8W |
|
|
LED Material | AlGaInP |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| ECCN: | EAR99 |
| SCHEDULE B: | PARTS... |
| HTSN: | PARTS... |
Documents
Please log in to view more information.
Documents
| Title | Download | Type | Date Published |
|---|---|---|---|
| Product Guide for SML-D12V8W | Product-Guides | 20150617 |
