Manufacturer:
Rohm

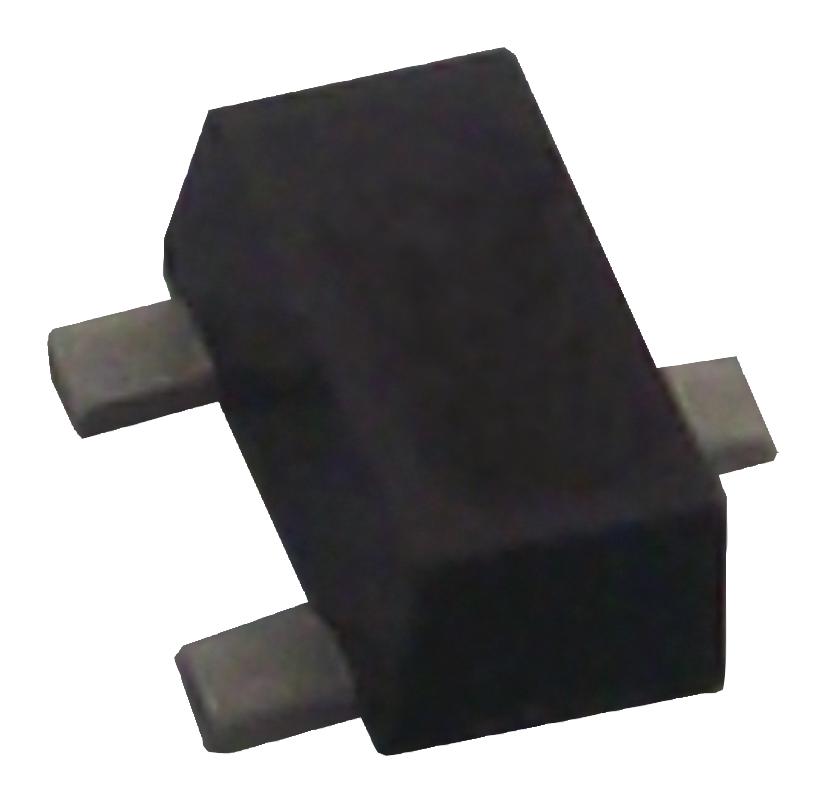

DTC124EUAT106
Trans Digital BJT NPN 100mA 3-Pin UMT T/R
Avnet Manufacturer Part #:
DTC124EUAT106
RoHS 10 Compliant
ROHM recommends DTC024EUB as standard spec.
Key Features
· Standard digital transistor
· Built-In Biasing Resistors
· Small Surface Mount Package
· Pb Free/RoHS Compliant
· Built-In Biasing Resistors
· Small Surface Mount Package
· Pb Free/RoHS Compliant
Technical Attributes
Find Similar Parts|
|
Description | Value |
|---|---|---|
|
|
Operating Temperature Max | 150 |
|
|
Base Input Resistor R1 | 22 kOhm |
|
|
Transistor Case Style | SOT-323 |
|
|
DC Current Gain hFE Min | 56 |
|
|
Collector Emitter Voltage NPN Max | 50 |
|
|
No. of Pins | 3 |
|
|
Transistor Polarity | NPN |
|
|
Transistor Mounting | Surface Mount |
|
|
Power Dissipation | 200 |
|
|
Continuous Collector Current | 100 |
|
|
Product Range | DTC124E Series |
|
|
Base Emitter Resistor R2 | 22 |
|
|
MSL Level | MSL 1 - Unlimited |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| ECCN: | EAR99 |
| SCHEDULE B: | PARTS... |
| HTSN: | PARTS... |
Documents
Please log in to view more information.
Documents
| Title | Download | Type | Date Published |
|---|---|---|---|
| Product Guide for DTC124EUA | Product-Guides | 20150617 |
