Manufacturer:
Rohm
Product Category:
Power Management,
Power Load Distribution Switches

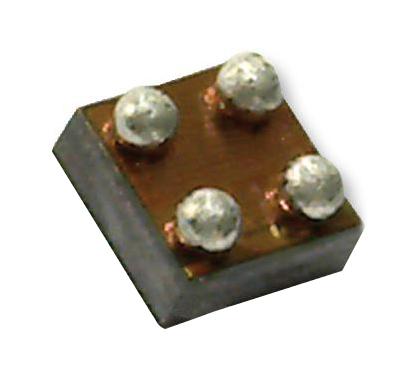

BUS1DJC0GWZ-E2
Power Switch Hi Side 2A 4-Pin UCSP30L1 Embossed T/R
Avnet Manufacturer Part #:
BUS1DJC0GWZ-E2
RoHS 10 Compliant
BUS1DJC0GWZ is low ON-Resistance high-side power switch P-channel MOSFETs. It comes in ultra-small package for portable digital applications. This switch IC operates on low input voltages ranging from 1.1V to 5.0V and exhibits a typical ON-resistance of 63mΩ at 3.3V. The turn ON time of the device can be controlled to avoid inrush current.
Key Features
・P-MOSFET high-side load switch
・Low input voltage
・Ultra low bias current
・Ultra low standby current
・Built-in discharge circuit
・Built-in soft start circuit
・Built-in short circuit protection
・Input logic : Active-High
・Ultra small package
・ESD protection
・Low input voltage
・Ultra low bias current
・Ultra low standby current
・Built-in discharge circuit
・Built-in soft start circuit
・Built-in short circuit protection
・Input logic : Active-High
・Ultra small package
・ESD protection
Technical Attributes
Find Similar Parts|
|
Description | Value |
|---|---|---|
|
|
IC Case / Package | UCSP |
|
|
No. of Pins | 4 |
|
|
Current Limit | 2 A |
|
|
No. of Channels | 1 |
|
|
No. of Outputs | 1 |
|
|
Input Voltage | 5 V |
|
|
Operating Temperature Max | 85 °C |
|
|
Operating Temperature Min | -30 °C |
|
|
On State Resistance | 245 mOhm |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| ECCN: | EAR99 |
| SCHEDULE B: | 8542310000 |
| HTSN: | 8542310001 |
Documents
Please log in to view more information.
Documents
| Title | Download | Type | Date Published |
|---|---|---|---|
| Product Guide for BUS1DJC0GWZ | Product-Guides | 20150617 |
