Manufacturer:
Rohm
Product Category:
Power Management,
Power Load Distribution Switches
BD2242G-GTR

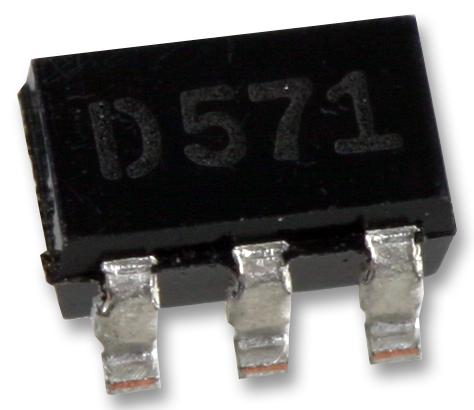

USB Power SW Hi Side Single 5.5V 1.7A 6-Pin SSOP Embossed T/R
Avnet Manufacturer Part #:
BD2242G-GTR
RoHS 10 Compliant
BD2242G is a low on-resistance N-channel MOSFET high-side power switches, optimized for Universal Serial Bus (USB) applications. These devices are equipped with the function of over-current detection, thermal shutdown, under-voltage lockout and soft-start. Moreover, the range of Current limit threshold can be adjusted from 0.2A to 1.7A by changing the external resistance.
Key Features
- Adjustable Current Limit Threshold: 200mA to 1.7A
- Low On-Resistance (Typ 89mΩ) N-channel MOSFET Built-in
- Soft-Start Circuit
- Output Discharge Function BD2242G
- Open-Drain Fault Flag Output
- Thermal Shutdown
- Under-Voltage Lockout
- Reverse Current Protection when Power Switch Off
- Control Input Logic Active-High
- Active-High: BD2242G
- Output Load Current 1.5A(Max.)
Technical Attributes
Find Similar Parts|
|
Description | Value |
|---|---|---|
|
|
Input Voltage | 5.5 V |
|
|
No. of Outputs | 1 |
|
|
No. of Channels | 1 |
|
|
On State Resistance | 120 mOhm |
|
|
Current Limit | 1.5 A |
|
|
Operating Temperature Max | 85 °C |
|
|
IC Case / Package | SSOP |
|
|
Operating Temperature Min | -40 °C |
|
|
No. of Pins | 6 |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| ECCN: | EAR99 |
| SCHEDULE B: | PARTS... |
| HTSN: | PARTS... |
