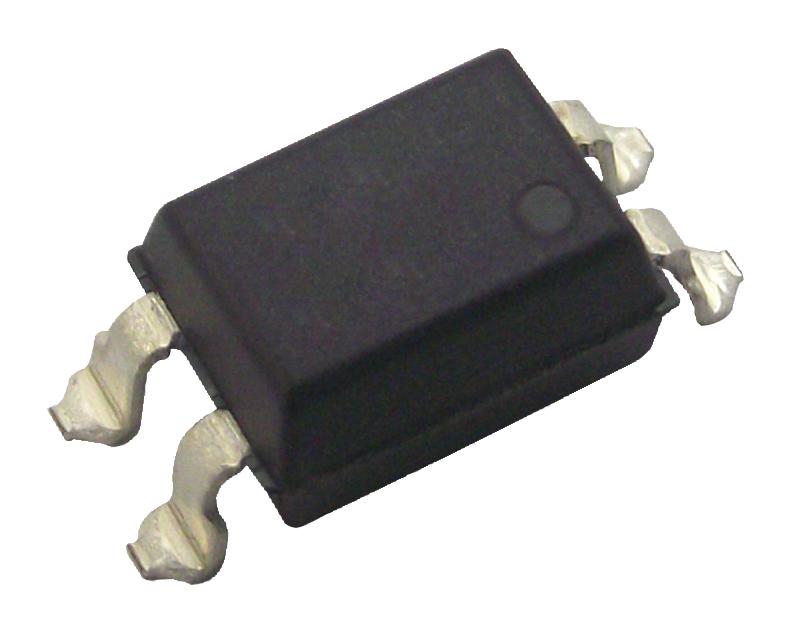

PS2705-1-F3-A

Optocoupler, 1 Channel, SOP, 4 Pins, 50 mA, 3.75 kV, 50 %

PS2705-1-F3-A in Transistor & Photovoltaic Output PhotoCouplers by Renesas Electronics
Renesas Electronics
Manufacturer: Renesas Electronics
Avnet Manufacturer Part #: PS2705-1-F3-A
RoHS 6 Compliant

The PS2705-1 is an optically coupled isolator containing a GaAs light emitting diode and an NPN silicon phototransistor. This package is SOP (Small Outline Package) type and has shield effect to cut off ambient light. It is designed for high density mounting applications.

Key Features

  • AC input response
  • High isolation voltage (BV = 3750 Vrms.)
  • High current transfer ratio (CTR = 100% TYP.)
  • SOP (Small Outline Package) type
  • High-speed switching (tr = 3 µs TYP., tf = 5 µs TYP.)
  • Ordering number of product : PS2705-1:Magazine case 100 pcs
  • Safety standards
    • UL approved: File No. E72422
    • BSI approved: File No. 8219/8220
    • CSA approved: File No. CA 101391
    • DIN EN60747-5-2 (VDE0884 Part2) approved

Technical Attributes

Find Similar Parts
Description Value
Lead Finish Tin-Bismuth
Pin Count 4
Maximum Current Transfer Ratio @ Current 300@5mA %
Input Type AC
Supplier Package SOP
Operating Temperature -55 to 100 °C
Maximum Collector Emitter Saturation Voltage 300 mV
Maximum Power Dissipation 150 mW
Mounting Surface Mount
Number of Channels per Chip 1
Product Dimensions 4 x 4.4 x 2 mm
Output Type DC
Max Processing Temp 260
Input Current 50 mA
Maximum Collector Current 80 mA
Channel Type N
Maximum Collector Emitter Voltage 40 V

ECCN / UNSPSC / COO

Description Value
ECCN: EAR99
SCHEDULE B: 8541408000
HTSN: 8541408000
CLEAR ALL Compare (0/10)
