Manufacturer:
Panasonic
Product Category:
Resistors,
Surface Mount Resistors

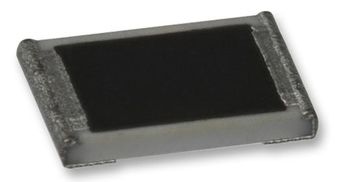

ERJ2RKF1600X
SMD Chip Resistor, 160 ohm, ± 1%, 100 mW, 0402 [1005 Metric], Thick Film, Precision
Avnet Manufacturer Part #:
ERJ2RKF1600X
RoHS 10 Exempt
The Panasonic ERJ series type 2R resistors are automotive grade precision thick film chip resistors. The resistance range includes E24 and E96 decade values from 10 ohm to 1Mohm. ERJ series resistors have metal glaze thick film resistive element and three layers of electrodes that make them highly reliable.
Key Features
- EIA 0402 case size
- Small size, low weight resistors
- Automotive grade AEC-Q200 qualified
- Maximum power rating of 63mW
- Resistance tolerance of ±0.5%
- Temperature coefficient (TCR) of ±100ppm/°C
- Operating temperature range from -55°C to 125°C
- Meets IEC 60115-8, JIS C 5201-8, EIAJ RC-2134B standards
- Suitable for both reflow and flow soldering
Technical Attributes
Find Similar Parts|
|
Description | Value |
|---|---|---|
|
|
Qualification | AEC-Q200 |
|
|
Product Width | 0.5 mm |
|
|
Product Length | 1 mm |
|
|
Resistor Type | Precision |
|
|
Temperature Coefficient | 100.0000 ppm/°C |
|
|
Power Rating | 0.1 W |
|
|
Resistor Technology | Thick Film |
|
|
Resistance Tolerance | 1 |
|
|
Product Range | ERJ2RK Series |
|
|
Resistor Case / Package | 402 |
|
|
Operating Temperature Min | -55 |
|
|
Operating Temperature Max | 155 |
|
|
Resistance | 160 Ohm |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| ECCN: | EAR99 |
| SCHEDULE B: | PARTS... |
| HTSN: | PARTS... |
