Manufacturer:
onsemi
Product Category:
Filters,
EMI/RFI Filters

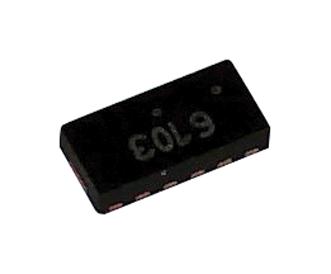

SNUF6401MNT1G
Special Function IC, C-R-C 6-Channel EMI Filter with Integrated ESD Protection, 110 MHz, DFN-12
Avnet Manufacturer Part #:
SNUF6401MNT1G
RoHS 10 Compliant
This Device is a 6 Line EMI Filter array for wireless applications.Greater than -30 dB attenuation is obtained at frequencies from 800 MHz to 3.0 GHz.It also offers ESD protection, clamping transients from static discharges.ESD protection is provided across all capacitors.
Key Features
- EMI Filtering and ESD Protection
- AECQ101 Qualified and PPAP CapableSNUF6401
- ESD Ratings:IEC61000-4-2 (Level 4), Machine Model = C, Human Body Model = 3 B
- DFN Package, 1.35 x 3.0 mm
- Moisture Sensitivity Level 1
- ESD Ratings:Machine Model = C and Human Body Model = 3B
- This is a Pb-Free Device
- Integration of 30 Discrete Components
Technical Attributes
Find Similar Parts|
|
Description | Value |
|---|---|---|
|
|
Type | 6 Channel EMI Filter and Integrated ESD Protection |
|
|
Max Processing Temp | 260 |
|
|
Operating Temperature | -40 to 85 °C |
|
|
Product Dimensions | 3 x 1.35 x 1 mm |
|
|
Product Length | 3 mm |
|
|
Operating Frequency | 800, 3000 MHz |
|
|
Termination | Flat Style |
|
|
Maximum Attenuation | >30 dB |
|
|
Mounting | Surface Mount |
|
|
MSL Level | MSL 1 - Unlimited |
|
|
Lead Finish | Matte Tin |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| ECCN: | EAR99 |
| SCHEDULE B: | PARTS... |
| HTSN: | PARTS... |
Documents
Please log in to view more information.
Documents
| Title | Download | Type | Date Published |
|---|---|---|---|
| ON-PB21344X PCN | EOL-Documentation | 20160109 | |
| ON-PB21344X PCN | Other-Documents | 20160109 |
