Manufacturer:
onsemi
Product Category:
Filters,
EMI/RFI Filters

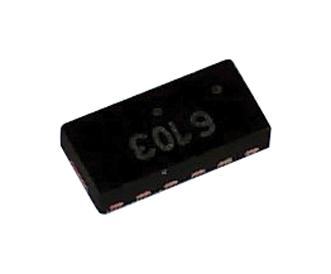

NUF6010MUT2G
EMI Filter 800MHz to 3000MHz 20dB Flat Style SMD T/R
Avnet Manufacturer Part #:
NUF6010MUT2G
RoHS 10 Compliant
This device is a 6 line EMI filter array for wireless applications. Greater than -20 dB attenuation is obtained at frequencies from 800 MHz to 3.0 GHz. The NUF6010MU has a cut-off frequency of 250 MHz. This UDFN package is specifically designed to enhance EMI filtering for low-profile or slim design electronics especially where space and height is a premium. It also offers ESD protection clamping transients from static discharges. ESD protection is provided across all capacitors.
Key Features
- EMI Filtering and ESD Protection
- Integration of 30 Discrete Components
- UDFN Package, 1.2 x 2.5 mm
- Moisture Sensitivity Level 1
- ESD Ratings: IEC61000-4-2 (Level 4), Machine Model = C, Human Body Model = 3B
- This is a Pb-Free Device
Technical Attributes
Find Similar Parts|
|
Description | Value |
|---|---|---|
|
|
Lead Finish | Matte Tin |
|
|
Mounting | Surface Mount |
|
|
Termination | Flat Style |
|
|
Type | 6 Channel EMI Filter and Integrated ESD Protection |
|
|
Max Processing Temp | 260 |
|
|
Operating Temperature | -40 to 85 °C |
|
|
Operating Frequency | 800, 3000 MHz |
|
|
MSL Level | MSL 1 - Unlimited |
|
|
Product Dimensions | 2.5 x 1.2 x 0.55 mm |
|
|
Maximum Attenuation | 20 dB |
|
|
Product Length | 2.5 mm |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| ECCN: | EAR99 |
| SCHEDULE B: | PARTS... |
| HTSN: | PARTS... |
