Manufacturer:
onsemi
HMHA2801R2
Optocoupler 1-CH Open Collector-OUT 3.75kVrms 4-Pin MFP T/R
Avnet Manufacturer Part #:
HMHA2801R2
RoHS 10 Compliant

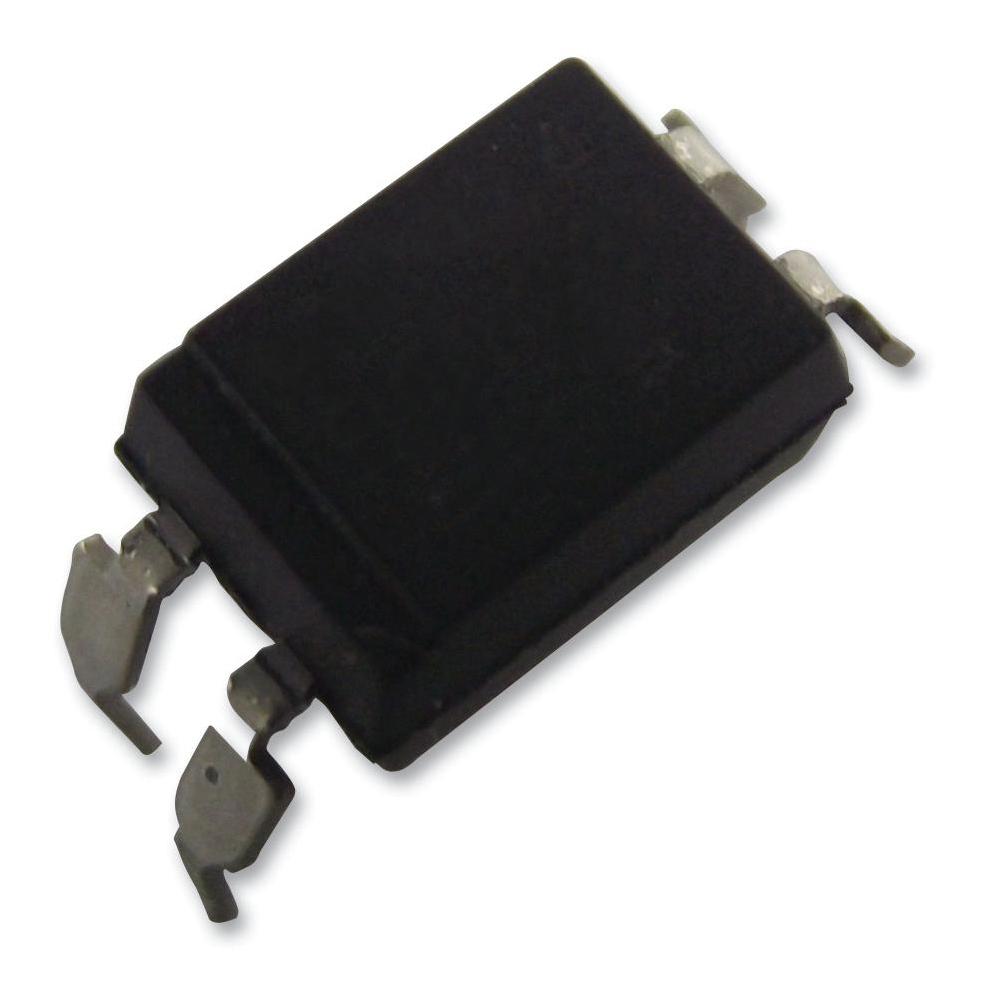

The HMHA2801 is a 4-Pin Half-Pitch Mini-Flat Phototransistor Optocouplers The HMHA281 series devices consist of a gallium arsenide infrared emitting diode driving a silicon phototransistor in a compact 4-pin mini-flat package. The lead pitch is 1.27 mm.
Key Features
- Compact 4-pin Package
- 2.4 mm Maximum Standoff Height
- Half-pitch Leads for Optimum Board Space Savings
- Current Transfer Ratio: HMHA2801: 80% to 600%
- Safety and Regulatory Approvals:
- UL1577, 3,750 VACRMS for 1 Minute
- DIN-EN/IEC60747-5-5, 565 V Peak Working Insulation Voltage
Technical Attributes
Find Similar Parts|
|
Description | Value |
|---|---|---|
|
|
Fall Time | 3 us |
|
|
Pin Count | 4 |
|
|
MSL Level | 1 |
|
|
Lead Finish | Matte Tin |
|
|
Supplier Package | MFP |
|
|
Input Type | DC |
|
|
Maximum Rise Time | 9 us |
|
|
Max Processing Temp | 260 °C |
|
|
Input Current | 200 mA |
|
|
Output Type | Open Collector |
|
|
Maximum Collector Emitter Voltage | 80 V |
|
|
Typical Rise Time | 3 us |
|
|
Operating Temperature | -55 to 100 to 100 °C |
|
|
Maximum Current Transfer Ratio @ Current | 600@5mA % |
|
|
Mounting | Surface Mount |
|
|
Maximum Power Dissipation | 150 mW |
|
|
Maximum Fall Time | 9 us |
|
|
Minimum Isolation Voltage | 3750 Vrms |
|
|
Reverse Voltage | 6 V |
|
|
Product Dimensions | 4.4 x 2.69 x 2.11 mm |
|
|
Series Name | HMHA2801 |
|
|
Number of Channels per Chip | 1 |
|
|
Maximum Collector Current | 50 mA |
|
|
Channel Type | N |
|
|
Forward Voltage | 1.3 V |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| ECCN: | EAR99 |
| SCHEDULE B: | 8541408000 |
| HTSN: | 8541408000 |
Documents
Please log in to view more information.
Documents
| Title | Download | Type | Date Published |
|---|---|---|---|
| HMHA2801R2 4LD,MFP(MINI FLAT PACKAGE),HALF-PITCH,WHITE COPLANAR | Part-Block-Diagram | 20010522 |
