Manufacturer:
Nexperia
PTVS36VP1UTP,115
Diode TVS Single Uni-Dir 36V 600W 2-Pin SOD-128 T/R
Avnet Manufacturer Part #:
PTVS36VP1UTP,115
RoHS 10 Exempt

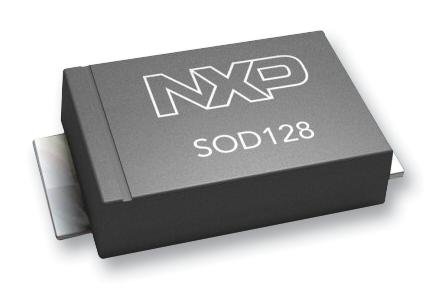

600 W unidirectional Transient Voltage Suppressor (TVS) in a SOD128 small and flat lead Surface-Mounted Device (SMD) plastic package, designed for transient overvoltage protection in high-temperature applications.
Key Features
- Rated peak pulse power: PPPM = 600 W
- High temperature stability Tj ≤ 185 °C
- Small plastic package suitable for surface-mounted design
- Reverse current: IRM = 0.001 µA
- AEC-Q101 qualified
- Very low package height: 1 mm
- Reverse standoff voltage VRWM = 36V
Technical Attributes
Find Similar Parts|
|
Description | Value |
|---|---|---|
|
|
Operating Temperature Max | 185 °C |
|
|
Mounting | Surface Mount |
|
|
Direction | Uni-Directional |
|
|
No. of Pins | 2 |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| ECCN: | EAR99 |
| SCHEDULE B: | 8541100050 |
| HTSN: | 8541100050 |
