Manufacturer:
Nexperia
PMEG2010BELD315
Diode Schottky 20V 1A 2-Pin SOD-882 T/R
Avnet Manufacturer Part #:
PMEG2010BELD,315
RoHS 6 Compliant

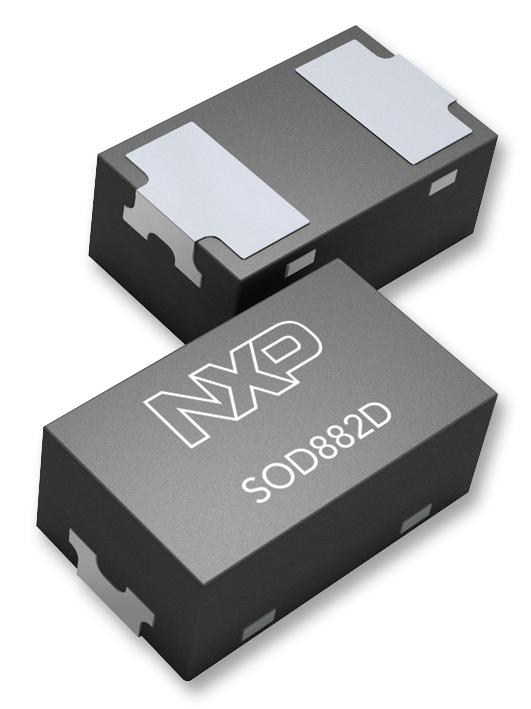

Planar Maximum Efficiency General Application (MEGA) Schottky barrier rectifier with an integrated guard ring for stress protection, encapsulated in a leadless ultra small DFN1006D-2 (SOD882D) Surface-Mounted Device (SMD) plastic package with visible and solderable side pads.
Key Features
- Average forward current: IF(AV) ≤ 1 A
- Reverse voltage: VR ≤ 20 V
- Low forward voltage VF ≤ 490 mV
- AEC-Q101 qualified
- Ultra small and leadless SMD plastic package
- Solderable side pads
- Package height typ. 0.37 mm
Technical Attributes
Find Similar Parts|
|
Description | Value |
|---|---|---|
|
|
Operating Temperature Max | 150 |
|
|
Forward Voltage Max | 490 |
|
|
Average Forward Current | 1 |
|
|
Diode Mounting | Surface Mount |
|
|
Repetitive Peak Reverse Voltage | 20 |
|
|
No. of Pins | 2 |
|
|
Diode Configuration | Single |
|
|
MSL Level | MSL 1 - Unlimited |
|
|
Diode Case Style | SOD-882D |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| ECCN: | EAR99 |
| SCHEDULE B: | 8541100080 |
| HTSN: | 8541100080 |
