Nexperia
PMEG045V100EPDAZ
Diode Schottky Rectifier 45V 10A 3-Pin SOT-1289 T/R
Avnet Manufacturer Part #:
PMEG045V100EPDAZ
RoHS 10 Exempt

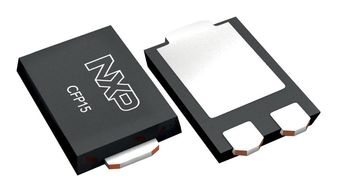

Planar Maximum Efficiency General Application (MEGA) Schottky barrier rectifier with an integrated guard ring for stress protection, encapsulated in a CFP15 (SOT1289) power and flat lead Surface-Mounted Device (SMD) plastic package.
Key Features
- Average forward current: IF(AV) ≤ 10 A
- Reverse voltage: VR ≤ 45 V
- Extremely low forward voltage
- High power capability due to clip-bonding technology and heat sink
- Small and thin SMD power plastic package, typical height 0.78 mm
- AEC-Q101 qualified
Technical Attributes
Find Similar Parts|
|
Description | Value |
|---|---|---|
|
|
Diode Case Style | SOT-1289 |
|
|
Forward Voltage Max | 490 |
|
|
Average Forward Current | 10 |
|
|
Diode Configuration | Single Dual Anode |
|
|
Operating Temperature Max | 175 |
|
|
MSL Level | 1 |
|
|
No. of Pins | 3 |
|
|
Diode Mounting | Surface Mount |
|
|
Repetitive Peak Reverse Voltage | 45 |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| ECCN: | EAR99 |
| SCHEDULE B: | 8541100080 |
| HTSN: | 8541100080 |
