74LVC1G3157GM,115

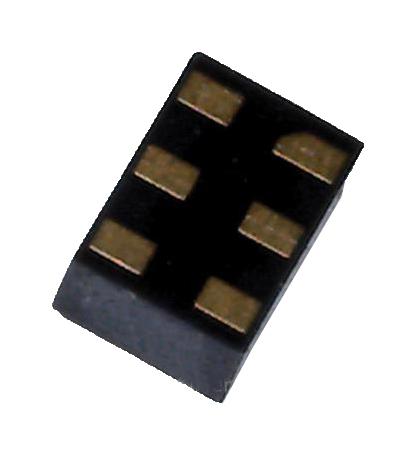

Analog Multiplexer/Demultiplexer, 1 Circuit, 2:1, 195 Ohm,1.65V to 5.5V, XSON-6, -40 °C to 125 °C

74LVC1G3157GM,115 in Analog Switches, Multiplexers & Demultiplexers by Nexperia
Avnet Manufacturer Part #: 74LVC1G3157GM,115
RoHS 6 Compliant

The 74LVC1G3157 provides one analog multiplexer/demultiplexer with one digital select input (S), two independent inputs/outputs (Y0, Y1) and a common input/output (Z). Schmitt trigger action at the select input makes the circuit tolerant of slower input rise and fall times across the entire VCC range from 1.65 V to 5.5 V.

Key Features

  • Wide supply voltage range from 1.65 V to 5.5 V
  • Very low ON resistance:
    • 7.5 Ω (typical) at VCC = 2.7 V
    • 6.5 Ω (typical) at VCC = 3.3 V
    • 6 Ω (typical) at VCC = 5 V
  • Switch current capability of 32 mA
  • Break-before-make switching
  • High noise immunity
  • CMOS low power consumption
  • TTL interface compatibility at 3.3 V
  • Latch-up performance meets requirements of JESD 78 Class I
  • ESD protection:
    • HBM JESD22-A114F exceeds 2000 V
    • MM JESD22-A115-A exceeds 200 V
  • Control input accepts voltages up to 5.5 V
  • Multiple package options
  • Specified from –40 ℃ to +85 ℃ and from –40 ℃ to +125 ℃

Technical Attributes

Find Similar Parts
Description Value
Operating Temperature Max 125
Output Signal Type Single-Ended
IC Case / Package XSON
No. of Channels 1
Mux / Demux Configuration 2:1, 1:2
IC Function Analog Switch, Analog Multiplexer/Demultiplexer
No. of Pins 6
Operating Temperature Min -40
Number of Channels per Chip 1
Maximum On Resistance Range 150 to 250 Ohm
Maximum Frequency (25 deg C) @ Vcc 200@1.65|300@2.3|300@3|300@4.5 MHz
On Resistance Max 130
Supply Voltage Range 1.65V to 5.5V
Propagation Delay Test Condition 50 pF
Power Supply Type Single Supply
Product Range LVC Series
Switch Configuration SPDT
IC Mounting Surface Mount

ECCN / UNSPSC / COO

Description Value
ECCN: EAR99
SCHEDULE B: 8542390000
HTSN: 8542390001
