Manufacturer:
Nexperia
Product Category:
Logic ICs,
Gates & Inverters
74AHC1G08GW-Q100,125

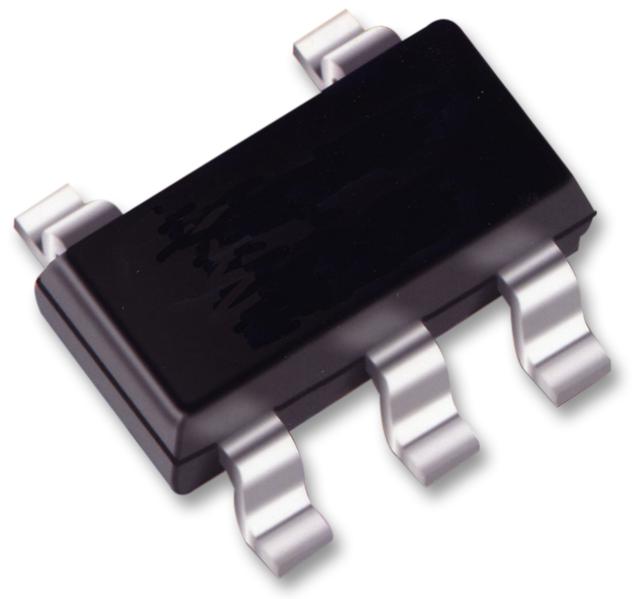

AND Gate, Single, 2 Input, 5 Pins, TSSOP, 74AHC1G08
Avnet Manufacturer Part #:
74AHC1G08GW-Q100,1
RoHS 10 Compliant
74AHC1G08-Q100 and 74AHCT1G08-Q100 are high-speed Si-gate CMOS devices. They provide a 2-input AND function. The AHC device has CMOS input switching levels and supply voltage range 2 V to 5.5 V. The AHCT device has TTL input switching levels and supply voltage range 4.5 V to 5.5 V. This product has been qualified to the Automotive Electronics Council (AEC) standard Q100 (Grade 1) and is suitable for use in automotive applications.
Key Features
- Automotive product qualification in accordance with AEC-Q100 (Grade 1)
- Specified from -40 °C to +85 °C and from -40 °C to +125 °C
- Symmetrical output impedance
- High noise immunity
- Low power dissipation
- Balanced propagation delays
- ESD protection:
- MIL-STD-883, method 3015 exceeds 2000 V
- HBM JESD22-A114F exceeds 2000 V
- MM JESD22-A115-A exceeds 200 V (C = 200 pF, R = 0 Ω)
- SOT353-1 and SOT753 package options
Technical Attributes
Find Similar Parts|
|
Description | Value |
|---|---|---|
|
|
Logic Function | AND Gate |
|
|
IC Case / Package | TSSOP |
|
|
No. of Pins | 5 |
|
|
Operating Temperature Max | 125 °C |
|
|
Supply Voltage Max | 5.5 V |
|
|
Operating Temperature Min | -40 °C |
|
|
Minimum Operating Supply Voltage | 2 V |
|
|
Maximum Operating Supply Voltage | 5.5 V |
|
|
Supply Voltage Min | 2 V |
|
|
Product Range | 74AHC1G08 Series |
|
|
Logic IC Family | 74AHC |
|
|
No. of Elements | Single |
|
|
Propagation Delay | 12.3 ns |
|
|
No. of Inputs | 2 |
|
|
Output Current | 8 mA |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| ECCN: | EAR99 |
| SCHEDULE B: | 8542390000 |
| HTSN: | 8542390001 |
