Manufacturer:
Murata
Product Category:
Clock & Timing,
Crystals

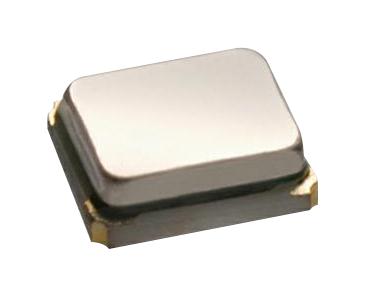

XRCGB24M000F3A00R0
Crystal, AEC-Q200, 24 MHz, SMD, 2mm x 1.6mm, 35 ppm, 6 pF, 30 ppm, XRCGB
Avnet Manufacturer Part #:
XRCGB24M000F3A00R0
RoHS 10 Compliant
Crystal, AEC-Q200, 24 MHz, SMD, 2mm x 1.6mm, 35 ppm, 6 pF, 30 ppm, XRCGB
Technical Attributes
Find Similar Parts|
|
Description | Value |
|---|---|---|
|
|
ESR | 120 Ohm |
|
|
Crystal Mounting | Surface Mount |
|
|
Crystal Case / Package | SMD |
|
|
Crystal Frequency | 24 MHz |
|
|
Frequency Tolerance + / - | 30 ppm |
|
|
Product Range | XRCGB_F_A Series |
|
|
No. of Pins | 3 |
|
|
Operating Temperature Max | 125 °C |
|
|
Qualification | AEC-Q200 |
|
|
Load Capacitance | 6 pF |
|
|
Operating Temperature Min | -40 °C |
|
|
Crystal Dimensions | 2mm x 1.6mm x 0.65mm |
|
|
Crystal Type | Quartz |
|
|
Frequency Stability + / - | 35 ppm |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| ECCN: | EAR99 |
| SCHEDULE B: | 8541600060 |
| HTSN: | 8541600060 |
